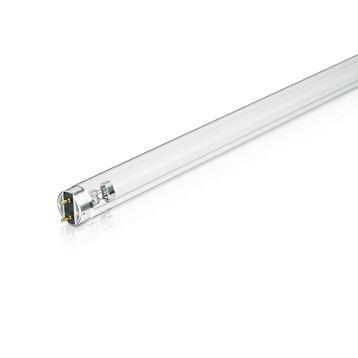

Philips Germicid TUV TL-D 30W G13

Cikkszám: 8711500726209

5.600.-Ft

GPC kód: 928039504005

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The TUV T8 family

    TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional water and air disinfection units. TUV T8 lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Moreover, they have a long and reliable lifetime, which allows maintenance to be planned for in advance.





    Features
    • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
    • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
    • Long lifetime of 18.000 hours (based on operation on a Philips electronic driver)
    • High reliability with the lowest percentage of lamps that fail prematurely in the market (90% of all lamps still operate on full output and quality after 15,000 hrs if operated on a Philips electronic driver)
    • Special lamp glass filters out the 185 nm ozone-forming radiation
    • High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size
    • Warning sign on lamp indicates that the lamp radiates UVC
    Applications
    • Air disinfection systems in professional applications such as universities, hospitals, jails and laboratories
    • Upper air and whole room disinfection equipment in hospitals, intensive care units and surgery rooms
    • Areas with low maintenance and/or disruptive costs
    • Fish ponds and process water units














    TUV T8 - Guaranteed lifetime simplifying planned maintenance in professional applications
    • Security of effective disinfection over the useful lifetime of the lamp
    • Maintenance can be planned in advance, virtually eliminating the need for expensive spot replacement of prematurely failed lamps
    • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
    • Good environmental choice because of lowest amount of mercury
    General Characteristics
    Cap-Base G13
    Bulb T26
    Main Application Disinfection
    Useful Life 9000 hr

    Electrical Characteristics
    Lamp Wattage 30 W
    Lamp Wattage Technical 30 W
    Lamp Voltage 102 V
    Lamp Current 0.37 A

    Environmental Characteristics
    Mercury (Hg) Content 2.0 mg

    UV-related Characteristics
    UV-C Radiation 12.0 W

    Product Dimensions
    Base Face to Base Face A 894.6 (max) mm
    Insertion Length B 899.3 (min), 901.7 (max) mm
    Overall Length C 908.8 (max) mm
    Diameter D 28 (max) mm

    Product Data
    Order code 928039504005
    Full product code 928039504005
    Full product name TUV 30W 1SL
    Order product name TUV 30W 1SL/25
    Pieces per pack 1
    Packing configuration 25
    Packs per outerbox 25
    Bar code on pack - EAN1 8711500726209
    Bar code on outerbox - EAN3 8711500638625
    Logistic code(s) - 12NC 928039504005
    Net weight per piece 131.000 gr


    Installation diagrams

    TUV 30W 1SL+
    G13+
