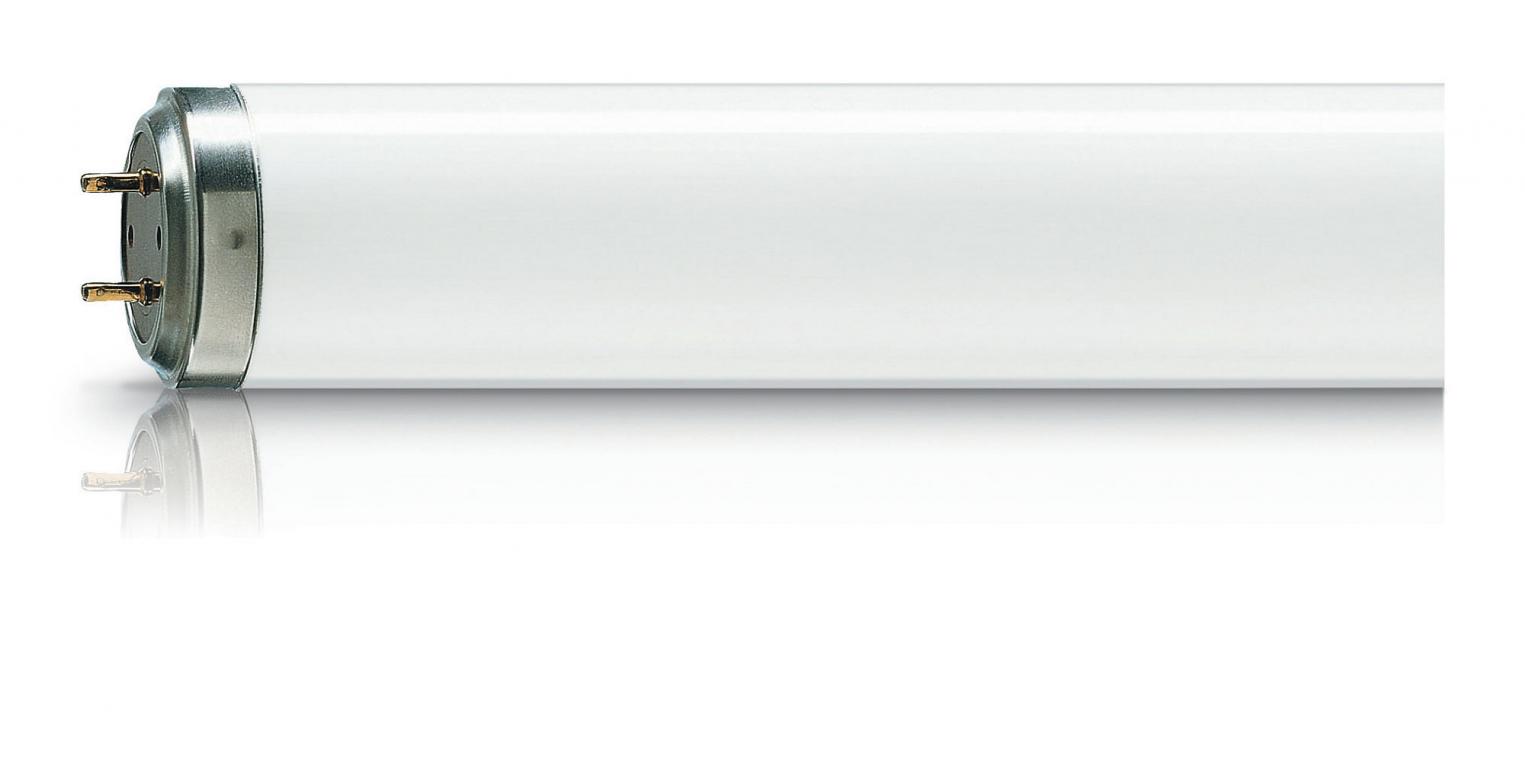

Philips TL 80W/10-R
Cikkszám: 8711500612625
9.400.-Ft
GPC kód: 928005901014
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
Flexo Print
Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm (except for the /03 version). This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200-degree reflector to further optimize the lamp’s overall efficiency.
Product Information
General Characteristics
| Cap-Base | G13 |
| Bulb | T12 [T12] |
| Main Application | Reprography |
| Useful Life | 1000 hr |
Light Technical Characteristics
| Color Code | 10-R |
| Color Designation (text) | Ultra Violet A |
| Chromaticity Coordinate X | 222 - |
| Chromaticity Coordinate Y | 210 - |
| Depreciation 500 hours | 10 % |
| Depreciation 1000 hours | 15 % |
| Depreciation 2000 hours | 30 % |
Electrical Characteristics
| Lamp Wattage | 80 W |
| Lamp Wattage Technical | 80 W |
| Lamp Voltage | 110 V |
| Lamp Current | 0.83 A |
Environmental Characteristics
| Mercury (Hg) Content | 13.0 mg |
UV-related Characteristics
| UV-A Radiation 100hr (IEC) | 20.5 W |
| UV-B/UV-A (IEC) | 0.1 % |
Product Dimensions
| Base Face to Base Face A | 1500 (max) mm |
| Insertion Length B | 1504.7 (min), 1507.1 (max) mm |
| Overall Length C | 1514.2 (max) mm |
| Diameter D | 40.5 (max) mm |
Product Data
| Order code | 928005901014 |
| Full product code | 928005901014 |
| Full product name | TL 80W/10-R |
| Order product name | TL 80W/10-R SLV/25 |
| Pieces per pack | 1 |
| Packing configuration | 25 |
| Packs per outerbox | 25 |
| Bar code on pack - EAN1 | 46677421533 |
| Bar code on outerbox - EAN3 | 50046677421538 |
| Logistic code(s) - 12NC | 928005901014 |
| Net weight per piece | 331.000 gr |
Installation diagrams
TL 80W/10-R
G13
