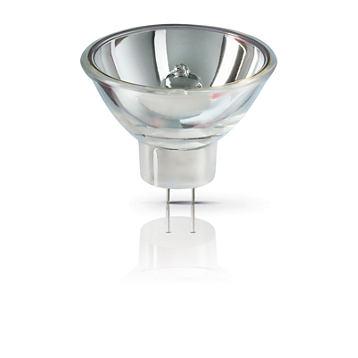

Philips 13164 200W 24V GX5.3 EJL Focusline Optical

Cikkszám: 8711500410580

6.800.-Ft

GPC kód: 923921120594

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The Halogen reflector family

    Philips’ halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.





    Features
    • Excellent distortion-free quartz bulb
    • Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards
    Applications
    • Medical endoscopy
    • Industrial endoscopy
    • Fiber optic illumination
    • Dental curing
    • Projection systems
    • Microfiche
    • Spectrography






    Halogen reflector lamps – proven reliability
    • Optimal light performance
    • Remains within temperature limits
    • No re-alignment necessary when lamp is replaced
    General Characteristics
    Philips Code 13164
    ANSI Code EJL
    LIF Code A1/252
    Cap-Base GX5.3
    Bulb Material Quartz-UV Open
    Reflector Finish Smooth
    Operating Position s90
    Main Application Projection
    Life to 50% failures 50 hr

    Light Technical Characteristics
    Color Rendering Index 100 Ra8
    Color Temperature Technical 3400 K
    Luminous Flux Lamp 1100 Lm

    Electrical Characteristics
    Lamp Wattage 200 W
    Voltage 24 V
    Dimmable Yes

    Luminaire Design Requirements
    Pinch Temperature 400 (max) C
    Bulb Temperature 900 (max) C
    Working Distance WD 32 mm

    Product Dimensions
    Overall Length C 44.45 (max) mm
    Diameter D 50.67 (max) mm

    Product Data
    Order code 923921120594
    Full product code 923921120594
    Full product name 13164 200W GX5.3 24V 1CT
    Order product name 13164 200W GX5.3 24V 1CT/24
    Pieces per pack 1
    Packing configuration 24
    Packs per outerbox 24
    Bar code on pack - EAN1 8711500410580
    Bar code on outerbox - EAN3 8711500419026
    Logistic code(s) - 12NC 923921120594
    Net weight per piece 0.025 kg


    Installation diagrams

    13164 200W GX5.3 24V 1CT+
    GX5.3+
    s90+
