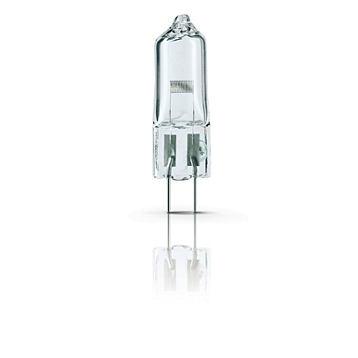

Philips 7027 50W 12V G6.35 BRL/BCD Focusline Flat Filament SE
Cikkszám: 8711500409829
2.700.-Ft
GPC kód: 923870217103
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Distortion-free, quartz bulb and precisely defined filament position
- Lamp replacement without adjustment
- XHP version with xenon gas for maximum light output
- Flat filament available
- Studio, film, theatre and disco lighting
- Slide, overhead, profile and 8/16 mm film projectors
- Microscopes
- Optical equipment
- Slide and film viewers
- Surgery lamps
- Microfilm readers
- Dental lamps
- Spectrography
- Optimal beam performance
- 100% Color Rendering Index (CRI)
- Constant light output throughout lifetime
The Halogen non-reflector family
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and a precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad variety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a color rendering index (CRI) of 100 – the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with almost no reduction, throughout their lifetime.
Features
Applications
Halogen non-reflector lamps – high-quality light and easy to use
General Characteristics
| Philips Code | 7027 |
| ANSI Code | BRL/BCD |
| LIF Code | A1/220 |
| Cap-Base | G6.35 |
| Bulb Material | Quartz-UV Open |
| Filament Shape | Flat |
| Operating Position | s90 |
| Main Application | Projection |
| Life to 50% failures | 50 hr |
Light Technical Characteristics
| Color Rendering Index | 100 Ra8 |
| Color Temperature Technical | 3300 K |
| Luminous Flux Lamp | 1500 Lm |
Electrical Characteristics
| Lamp Wattage | 50 W |
| Voltage | 12 V |
Luminaire Design Requirements
| Pinch Temperature | 400 (max) C |
| Bulb Temperature | 900 (max) C |
Product Dimensions
| Diameter D | 11.5 (max) mm |
| Light Center Length L | 29.75 (min), 30 (nom), 30.25 (max) mm |
| Pin Diameter P | 0.95 (min), 1 (nom), 1.05 (max) mm |
| Filament Dimensions (WxH) [mm] | 3.3x1.6 |
Product Data
| Order code | 923870217103 |
| Full product code | 923870217103 |
| Full product name | 7027 50W G6.35 12V 1CT |
| Order product name | 7027 50W G6.35 12V 1CT/10X10F |
| Pieces per pack | 1 |
| Packing configuration | 10X10F |
| Packs per outerbox | 100 |
| Bar code on pack - EAN1 | 8711500409829 |
| Bar code on intermediate packing - EAN2 | 8711500420039 |
| Bar code on outerbox - EAN3 | 8711500423245 |
| Logistic code(s) - 12NC | 923870217103 |
| Net weight per piece | 0.002 kg |
Installation diagrams
7027 50W G6.35 12V 1CT+
G6.35+
s90+
