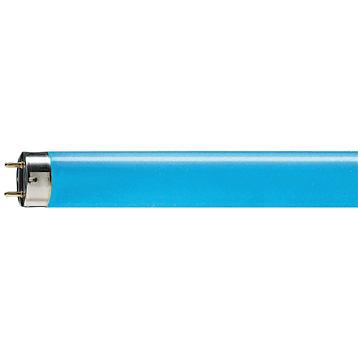

Philips Színes Fénycső MASTER TL-D 18W/18

Cikkszám: 8711500726902

6.000.-Ft

GPC kód: 928048001805

Energia besorolás: A


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    A TL-D Colored család

    This TL-D lamp (tube diameter 26 mm) helps to create special effects and atmospheres or attract attention by using red, green, blue and yellow light. Apart from using the specific colors, it is also possible to mix the colors to create white light. This lamp offers a high light output, thanks to the use of basic powders. Application areas include shops and showrooms, bars and restaurants, demonstration areas, sign lighting and entertainment stores.



    Szolgáltatások
    • The fluorescent powders of Red and Yellow lamps are mixed with a pigment to filter out unwanted wavelengths
    • Can be used with conventional or electronic gear
    • Depending on the control gear, dimming is possible
    Alkalmazások
    • For color effects in stage lighting, shop-window lighting, festive lighting, bars, dance halls etc.






    Red, Green and Blue fluorescent lighting
    • Choice of attractive colors
    Általános tulajdonságok
    Fej G13 [Medium Bi-Pin Fluorescent]
    Izzó T8 [26 mm]
    Life to 10% failures EM 12000 hr
    50% meghibásodás élettartam EM 15000 hr

    Fénytechnikai paraméterek
    Színkód 180
    Színleírás kék
    Fényáram EM 25°C, Névleges 400 Lm
    Fényáram EM 25°C, Nominal 400 Lm
    LLMF EM 2000 óra névleges 85 %
    Tervezett hőmérséklet 25 C
    Kromatikus koordinátaérték X 157 -
    Kromatikus koordinátaérték Y 75 -

    Elektromos adatok
    Fényforrás teljesítmény 18 W
    Fényforrás teljesítmény EM 25° 18 W
    Fényforrás teljesítmény EM 25° 18.0 W
    Lámpafeszültség EM 25°C 59 V
    Lámpa áram, EM 25°C 0.360 A
    Szabályozható igen

    Környezetvédelmi adatok
    Energiahasznosítás index (EEL) C
    Higanytartalom 13.0 mg
    Energy consumption kWh/1000h 23 kWh

    Termék méretek
    Base Face to Base Face A 589.8 (max) mm
    Insertion Length B 594.5 (min), 596.9 (max) mm
    Teljes hossz C 604.0 (max) mm
    Átmérő D 28.0 (max) mm

    Termék adatok
    Rendelési kód 726902 40
    Termékkód 871150072690240
    Termék név TL-D Colored 18W Blue 1SL
    Rendelési terméknév TL-D Colored 18W Blue 1SL/25
    Darabok per csomagban 1
    Csomagolási mennyiség 25
    csomag per gyujto 25
    Vonalkód a terméken 8711500726902
    Vonalkód a gyujtocsomagoláson 8711500726919
    Logisztikai kód(ok) -12NC 928048001805
    Nettó darabsúly 68.900 gr


    Beszerelési ábra

    TL-D Colored 18W Blue 1SL+
    G13+
