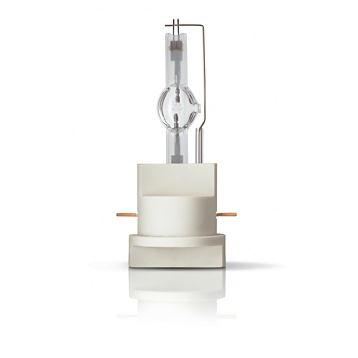

Philips Fémhalogén Lámpa MSR 1200 SA/SE Gold FastFit PGJX50
Cikkszám: 8718291221296
179.000.-Ft
GPC kód: 928175005115
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Philips FastFit
- Very short arc
- Compact design
- Flexible power range
- Philips pinch protection
- Innovative gold plated pins
- MSR filling
- Lamp replacement in just seconds, exchangeable with halogen lamp
- High beam intensity
- Easy handling, smaller and lighter fixtures possible
- Boostable light levels
- Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
- Reduces early lamp or lamp holder failures. Excellent current transfer
- Pure, white light; color point close to black body line
The MSR Gold™ FastFit family
All lamps burn out eventually, but when this happens with single ended MSR Gold™ FastFit, it is replaced in seconds – thanks to the specially designed lamp base and lamp holder. This lamp provides a high beam intensity of pure, white light for a truly illuminating performance, while the gold-plated caps provide superior heat protection and prevent premature failure. P3 technology allows use in any position and at higher temperatures, further extending lamp life and consistency of high-quality light output. Also, because the FastFit design is applied to Philips Halogen lamps, switching between lamp technologies can be done quickly and easily.
Features
MSR Gold™ FastFit – easy lamp replacement in seconds
General Characteristics
| System Description | FastFit |
| Cap-Base | PGJX50 |
| Cap-Base Information | PGJX50 |
| Operating Position | any |
| Main Application | Entertainment |
| Life to 50% failures EM | 750 hr |
Light Technical Characteristics
| Color Rendering Index | 80 Ra8 |
| Color Temperature | 6000 K |
| Color Temperature Technical | 6000 K |
| Chromaticity Coordinate X | 318 - |
| Chromaticity Coordinate Y | 327 - |
| Luminous Flux Lamp EM | 79500 (min), 95000 (nom) Lm |
| Luminous Efficacy Lamp EM | 80 Lm/W |
Electrical Characteristics
| Lamp Wattage | 1200 W |
| Lamp Wattage Technical | 1200 W |
| Lamp Current | 15 A |
| Ignition Supply Voltage | 198 (min) V |
| Dimmable | Yes |
Luminaire Design Requirements
| Pinch Temperature | 500 (max) C |
| Bulb Temperature | 950 (max) C |
Product Dimensions
| Overall Length C | 128 (max) mm |
| Diameter D | 26.1 (max) mm |
| Width F | 41 mm |
| Light Center Length L | 64 (min), 65 (nom), 66 (max) mm |
| Arc Length O | 5.5 mm |
Product Data
| Order code | 928175005115 |
| Full product code | 928175005115 |
| Full product name | MSR Gold™ 1200 FastFit 1CT |
| Order product name | MSR Gold 1200 FastFit 1CT/4 |
| Pieces per pack | 1 |
| Packing configuration | 4 |
| Packs per outerbox | 4 |
| Bar code on pack - EAN1 | 8718291221296 |
| Bar code on outerbox - EAN3 | 8718291221302 |
| Logistic code(s) - 12NC | 928175005115 |
| Net weight per piece | 0.147 kg |
Installation diagrams
MSR Gold™ 1200 FastFit 1CT+
PGJX50+
any+
