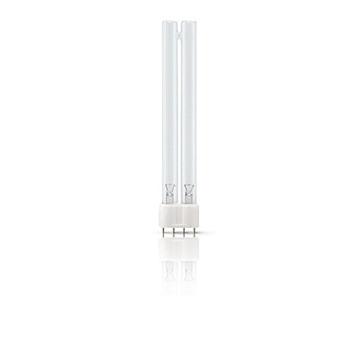

Philips Germicid TUV PL-L 24W 4P 2G11
Cikkszám: 8718291212485
6.000.-Ft
GPC kód: 927903204007
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
- High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
- Warning sign on lamp indicates that the lamp radiates UVC
- Deactivation of bacteria, viruses and other micro-organisms
- Residential drinking water units
- Fish pond and process water units
- In-duct air treatment units
- Stand alone air purifiers
- Air disinfection systems in for example hospitals, universities and laboratories
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
The TUV PL-L family
TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.
Features
Applications
TUV PL-L - Compact solution for professional applications
General Characteristics
| Cap-Base | 2G11 |
| Cap-Base Information | 4 Pins |
| Bulb | 2xT16 |
| Main Application | Disinfection |
| Useful Life | 9000 hr |
Light Technical Characteristics
| Color Code | TUV |
Electrical Characteristics
| Lamp Wattage | 24 W |
| Lamp Wattage Technical | 24 W |
| Lamp Voltage | 87 V |
| Lamp Current | 0.345 A |
UV-related Characteristics
| UV-C Radiation | 7.1 W |
Product Dimensions
| Base Face to Base Face A | 290 (max) mm |
| Insertion Length B | 315 (max) mm |
| Overall Length C | 320 (max) mm |
| Diameter D | 39 (max) mm |
| Diameter D1 | 18 (max) mm |
Product Data
| Order code | 927903204007 |
| Full product code | 927903204007 |
| Full product name | TUV PL-L 24W/4P 1CT |
| Order product name | TUV PL-L 24W/4P 1CT/25 |
| Pieces per pack | 1 |
| Packing configuration | 25 |
| Packs per outerbox | 25 |
| Bar code on pack - EAN1 | 8718291212485 |
| Bar code on outerbox - EAN3 | 8718291212492 |
| Logistic code(s) - 12NC | 927903204007 |
| Net weight per piece | 82.000 gr |
Installation diagrams
TUV PL-L 24W/4P 1CT+
2G11+
