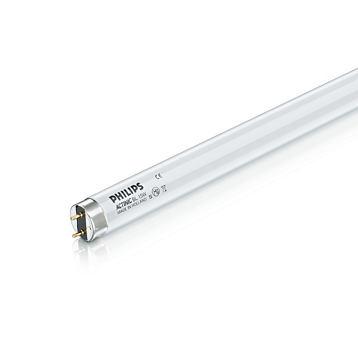

Philips Actinic BL TL-D 15W/10 G13

Cikkszám: 8711500710932

4.050.-Ft

GPC kód: 928024801029


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The Actinic BL TL(-K)/TL-D(-K) family

    With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.





    Features
    • Emits long-wave UV-A radiation in the 350-400nm range
    • UV-B/UV-A ratio less than 0.1 % (UV-B 280-315nm)
    • 100% lead-free
    • Low mercury content
    • Wide power range
    Applications
    • Insect traps, Electronic Fly Killers (EFKs)






    Actinic BL TL(-K)/TL-D(-K) – optimized for Electronic Fly Killers
    • Perfectly matches the eye sensitivity of houseflies and in this way attracts more insects
    • Safe for use
    • Good environmental choice
    • Design freedom
    General Characteristics
    Cap-Base G13
    Bulb T26
    Main Application Reprography
    Useful Life 5000 hr
    Life to 50% failures EM 8000 hr

    Light Technical Characteristics
    Color Code 10
    Color Designation (text) Actinic
    Chromaticity Coordinate X 222 -
    Chromaticity Coordinate Y 210 -
    Depreciation 5000 hours 30 %
    Depreciation 2000 hours 25 %

    Electrical Characteristics
    Lamp Wattage 15 W
    Lamp Wattage Technical 15 W
    Lamp Voltage 51 V
    Lamp Current 0.34 A

    Environmental Characteristics
    Mercury (Hg) Content 5.0 mg

    UV-related Characteristics
    UV-A Radiation 100hr (IEC) 3.5 W
    UV-B/UV-A (IEC) 0.2 %

    Product Dimensions
    Base Face to Base Face A 437.4 (max) mm
    Insertion Length B 442.1 (min), 444.5 (max) mm
    Overall Length C 451.6 (max) mm
    Diameter D 28 (max) mm

    Product Data
    Order code 928024801029
    Full product code 928024801029
    Full product name Actinic BL TL-D 15W/10 1SL
    Order product name Actinic BL TL-D 15W/10 1SL/25
    Pieces per pack 1
    Packing configuration 25
    Packs per outerbox 25
    Bar code on pack - EAN1 8711500710932
    Bar code on outerbox - EAN3 8711500710949
    Logistic code(s) - 12NC 928024801029
    Net weight per piece 59.600 gr


    Installation diagrams

    Actinic BL TL-D 15W/10 1SL+
    G13+
