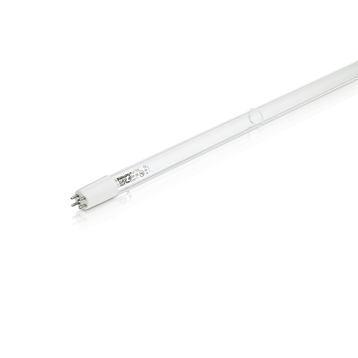

Philips Germicid TUV T5 HE 36W G5 4P SE
Cikkszám: 8711500642318
12.500.-Ft
GPC kód: 927970204099
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection
- Small diameter
- Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
- Lamp glass filters out the 185 nm ozone-forming radiation
- High temperature and UV-resistant lamp bases
- High Output versions available for optimum UVC output per lamp length, allowing for further reduction of system size
- Warning sign on lamp indicates that the lamp radiates UVC
- Deactivation of bacteria, viruses and other micro-organisms
- Air treatment systems
- Industrial water disinfection equipment, e.g. for food & beverage industry
- Small municipal water treatment systems
- Swimming pool units
- Residential drinking water units
- Security of effective disinfection over the useful lifetime of the lamp
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury
The TUV T5 family
TUV T5 lamps are single- or double-ended UVC (germicidal) lamps used in professional water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV T5 lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.
Features
Applications
TUV T5 - Small diameter lamps for professional applications
General Characteristics
| System Description | High Efficiency |
| Cap-Base | 4 Pins Single Ended |
| Cap-Base Information | 4 Pins Single Ended |
| Bulb | T16 |
| Main Application | Disinfection |
| Useful Life | 9000 hr |
Electrical Characteristics
| Lamp Wattage | 40 W |
| Lamp Wattage Technical | 40 W |
| Lamp Voltage | 94 V |
| Lamp Current | 0.425 A |
UV-related Characteristics
| UV-C Radiation | 15 W |
Product Dimensions
| Reference Length A | 839.4 (min), 842.4 (nom), 845.4 (max) mm |
| Overall Length C | 846.1 (min), 849.5 (nom), 852.9 (max) mm |
| Diameter D | 19 (max) mm |
Product Data
| Order code | 927970204099 |
| Full product code | 927970204099 |
| Full product name | TUV 36T5 HE 4P SE UNP |
| Order product name | TUV 36T5 HE 4P SE UNP/32 |
| Pieces per pack | 1 |
| Packing configuration | 32 |
| Packs per outerbox | 32 |
| Bar code on pack - EAN1 | 8711500642318 |
| Bar code on outerbox - EAN3 | 8711500642349 |
| Logistic code(s) - 12NC | 927970204099 |
| Net weight per piece | 87.000 gr |
Installation diagrams
TUV 36T5 HE 4P SE UNP+
4 Pins Single Ended+
