Philips Germicid TUV TL-D 25W G13
Cikkszám: 8711500641618
5.400.-Ft
GPC kód: 928039404005
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- Long lifetime of 18.000 hours (based on operation on a Philips electronic driver)
- High reliability with the lowest percentage of lamps that fail prematurely in the market (90% of all lamps still operate on full output and quality after 15,000 hrs if operated on a Philips electronic driver)
- Special lamp glass filters out the 185 nm ozone-forming radiation
- High Output versions available for optimum UVC output per lamp length, allowing for reduction of system size
- Warning sign on lamp indicates that the lamp radiates UVC
- Air disinfection systems in professional applications such as universities, hospitals, jails and laboratories
- Upper air and whole room disinfection equipment in hospitals, intensive care units and surgery rooms
- Areas with low maintenance and/or disruptive costs
- Fish ponds and process water units
- Security of effective disinfection over the useful lifetime of the lamp
- Maintenance can be planned in advance, virtually eliminating the need for expensive spot replacement of prematurely failed lamps
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
- Good environmental choice because of lowest amount of mercury

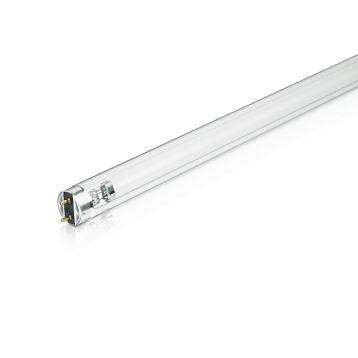

The TUV T8 family
TUV T8 lamps are double-ended UVC (germicidal) lamps used in professional water and air disinfection units. TUV T8 lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Moreover, they have a long and reliable lifetime, which allows maintenance to be planned for in advance.
Features
Applications
TUV T8 - Guaranteed lifetime simplifying planned maintenance in professional applications
General Characteristics
| Cap-Base | G13 |
| Bulb | T26 |
| Main Application | Disinfection |
| Useful Life | 9000 hr |
Electrical Characteristics
| Lamp Wattage | 25 W |
| Lamp Wattage Technical | 25.5 W |
| Lamp Voltage | 48 V |
| Lamp Current | 0.6 A |
Environmental Characteristics
| Mercury (Hg) Content | 2.0 mg |
UV-related Characteristics
| UV-C Radiation | 7 W |
Product Dimensions
| Base Face to Base Face A | 437.4 (max) mm |
| Insertion Length B | 442.1 (min), 444.5 (max) mm |
| Overall Length C | 451.6 (max) mm |
| Diameter D | 28 (max) mm |
Product Data
| Order code | 928039404005 |
| Full product code | 928039404005 |
| Full product name | TUV 25W 1SL |
| Order product name | TUV 25W 1SL/25 |
| Pieces per pack | 1 |
| Packing configuration | 25 |
| Packs per outerbox | 25 |
| Bar code on pack - EAN1 | 8711500641618 |
| Bar code on outerbox - EAN3 | 8711500641625 |
| Logistic code(s) - 12NC | 928039404005 |
| Net weight per piece | 69.900 gr |
Installation diagrams
TUV 25W 1SL+
G13+
