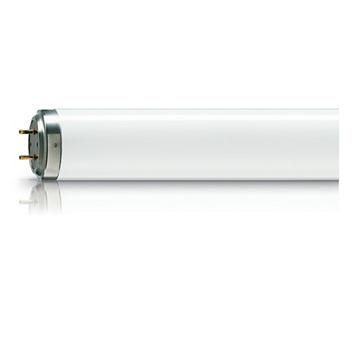

Philips Actinic BL TL 40W/10 G13
Cikkszám: 8711500260260
8.100.-Ft
GPC kód: 928011301020
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Emits long-wave UV-A radiation in the 350-400nm range
- UV-B/UV-A ratio less than 0.1 % (UV-B 280-315nm)
- 100% lead-free
- Low mercury content
- Wide power range
- Insect traps, Electronic Fly Killers (EFKs)
- Perfectly matches the eye sensitivity of houseflies and in this way attracts more insects
- Safe for use
- Good environmental choice
- Design freedom
The Actinic BL TL(-K)/TL-D(-K) family
With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.
Features
Applications
Actinic BL TL(-K)/TL-D(-K) – optimized for Electronic Fly Killers
General Characteristics
| System Description | Rapid Start |
| Cap-Base | G13 |
| Bulb | T12 |
| Main Application | Reprography |
| Useful Life | 5000 hr |
| Life to 50% failures EM | 9000 hr |
Light Technical Characteristics
| Color Code | 10 |
| Color Designation (text) | Actinic |
| Chromaticity Coordinate X | 222 - |
| Chromaticity Coordinate Y | 210 - |
| Depreciation 5000 hours | 40 % |
| Depreciation 2000 hours | 20 % |
Electrical Characteristics
| Lamp Wattage | 40 W |
| Lamp Wattage Technical | 39 W |
| Lamp Voltage | 101 V |
| Lamp Current | 0.43 A |
Environmental Characteristics
| Mercury (Hg) Content | 13.0 mg |
UV-related Characteristics
| UV-A Radiation 100hr (IEC) | 10.0 W |
| UV-B/UV-A (IEC) | 0.2 % |
| UV-A Radiation 0hr (IEC) | 12.4 W |
Product Dimensions
| Base Face to Base Face A | 1199.4 (max) mm |
| Insertion Length B | 1204.1 (min), 1206.5 (max) mm |
| Overall Length C | 1213.6 (max) mm |
| Diameter D | 40.5 (max) mm |
Product Data
| Order code | 928011301020 |
| Full product code | 928011301020 |
| Full product name | Actinic BL TL 40W/10 SLV |
| Order product name | Actinic BL TL 40W/10 SLV/25 |
| Pieces per pack | 1 |
| Packing configuration | 25 |
| Packs per outerbox | 25 |
| Bar code on pack - EAN1 | 8711500260260 |
| Bar code on outerbox - EAN3 | 8711500260277 |
| Logistic code(s) - 12NC | 928011301020 |
| Net weight per piece | 292.000 gr |
Installation diagrams
Actinic BL TL 40W/10 1SL+
G13+
