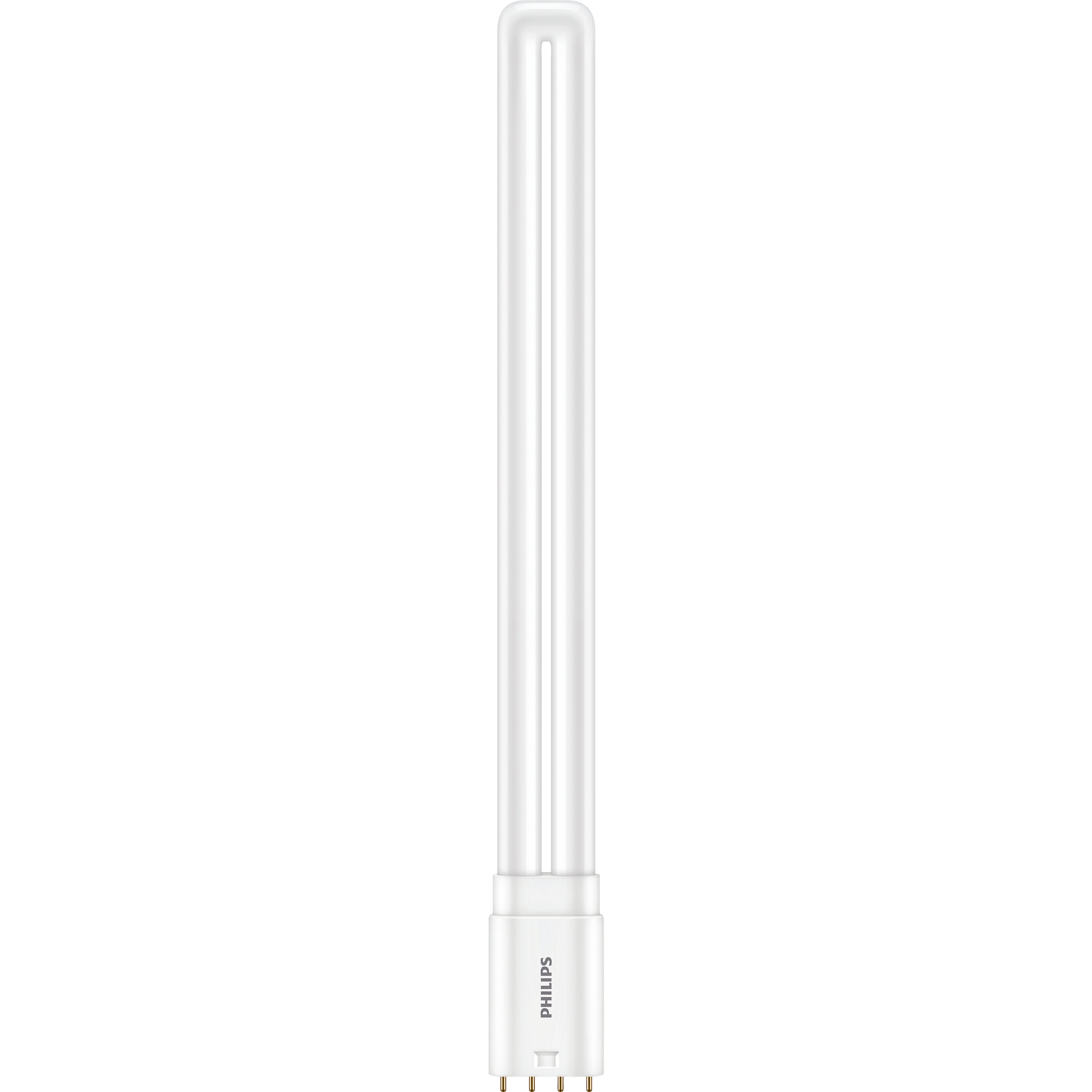

Philips CorePro LED PLL ND HF 16,5W/840 4P 2G11 (za 36W PLL)

Cikkszám: 8718696739747

11.990.-Ft

GPC kód: 929001381602

Energia besorolás: F


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    General Information
    Cap-Base
    2G11  [ 2G11]
    Nominal Lifetime (Nom)
    30000 h
    Switching Cycle
    50000X
    B50L70
    30000 h
    Light Technical
    Colour Code
    840  [ CCT of 4000K]
    Luminous Flux (Nom)
    2100 lm
    Luminous Flux (Rated) (Nom)
    2100 lm
    Colour Temperature, horizontal (Nom)
    4000 K
    Color Consistency
    <6 span="">
    Colour Rendering Index horiz (Nom)
    83
    LLMF At End Of Nominal Lifetime (Nom)
    70 %
    Operating and Electrical
    Input Frequency
    39000-71000 Hz
    Power (Rated) (Nom)
    16.5 W
    Lamp Current (Max)
    420 mA
    Lamp Current (Min)
    290 mA
    Starting Time (Nom)
    0.5 s
    Warm Up Time to 60% Light (Nom)
    0.5 s
    Voltage (Nom)
    53-77 V
    Temperature
    T-Ambient (Max)
    45 °C
    T-Ambient (Min)
    -20 °C
    T-Storage (Max)
    60 °C
    T-Storage (Min)
    -40 °C
    T-Case Maximum (Nom)
    70 °C
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Product Length
    400 mm
    Approval and Application
    Energy Saving Product
    Yes
    Energy Efficiency Label F
    Approval Marks

    TUV

    CE marking

    RoHS compliance

    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    20 kWh
    Product Data
    Full product code
    871869673974700
    Order product name
    CorePro LED PLL CorePro LED PLL HF 16.5W 840 4P 2G11
    EAN/UPC - Product
    8718696739747
    Order code
    73974700
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    10
    Material Nr. (12NC)
    929001381602
    Net Weight (Piece)
    0.160 kg

    Installation Diagrams

    2G11
    2G11
    Performance Diagrams

    LEDtube PLC 400mm 16-5W 2G11 830 2000lm
    LEDtube PLC 400mm 16-5W 2G11 830 2000lm
