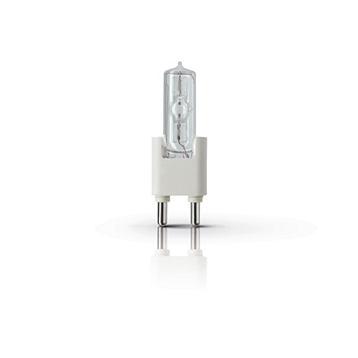

Philips Fémhalogén Lámpa MSR 1200 HR 1200W G38

Cikkszám: 8727900926064

219.500.-Ft

GPC kód: 928105005114


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR Hot Restrike family

    Thanks to an optimized color temperature and a high color rendering index, the MSR Hot Restrike creates perfect ‘daylight’ in any condition. Also, the single ended lamp design enables hot re-ignition, which ensures daylight lighting and superb color rendition is always instantly available. They also incorporate the innovative P3 technology, developed by Philips, which allows use at higher temperatures and therefore extends lifetime and consistency of high-quality light output.





    Features
    • Philips Pinch Protection
    • MSR filling
    • Optimal discharge tubes geometry
    • High efficacy
    • Single ended lamp concept
    • Hot Restrike capability
    Applications
    • Indoor and outdoor filming
    • Theaters
    • Professional photography
    • Solar simulation
    System
    • Can be operated on an electronic power supply or a magnetic ballast-ignitor combination
    • Hot re-ignition is possible with a high voltage peak of 25 - 55 kV









    MSR Hot Restrike –instant daylight at any time
    • Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
    • Perfect daylight color due to 6000K temperature with excellent color characteristics required for the set
    • No arc movement
    • High lumen output
    • High beam intensity
    • Hot re-ignition is possible ensuring the availability of the light at any time
    General Characteristics
    System Description Hot Restrike
    Cap-Base G38
    Operating Position any
    Main Application Studio/Theatre
    Life to 50% failures EM 1000 hr

    Light Technical Characteristics
    Color Rendering Index 95 Ra8
    Color Temperature 6000 K
    Color Temperature Technical 5900 K
    Chromaticity Coordinate X 323 -
    Chromaticity Coordinate Y 328 -
    Luminous Flux Lamp EM 94000 (min), 110000 (nom) Lm
    Luminous Efficacy Lamp EM 91 Lm/W

    Electrical Characteristics
    Lamp Wattage 1200 W
    Lamp Wattage Technical 1200 W
    Lamp Current 13.8 A
    Ignition Supply Voltage 207 (min) V
    Dimmable Yes

    Luminaire Design Requirements
    Pinch Temperature 350 (max) C
    Bulb Temperature 700 (max) C

    Product Dimensions
    Overall Length C 200 (max) mm
    Diameter D 40 (max) mm
    Width F 63 (min), 65 (nom), 67 (max) mm
    Light Center Length L 106 (min), 107 (nom), 108 (max) mm
    Arc Length O 10.0 mm

    Product Data
    Order code 928105005114
    Full product code 928105005114
    Full product name MSR 1200 HR 1CT
    Order product name MSR 1200 HR 1CT/2
    Pieces per pack 1
    Packing configuration 2
    Packs per outerbox 2
    Bar code on pack - EAN1 8727900926064
    Bar code on outerbox - EAN3 8727900926071
    Logistic code(s) - 12NC 928105005114
    Net weight per piece 0.275 kg


    Installation diagrams

    MSR 1200 HR 1CT+
    G38+
    any+
