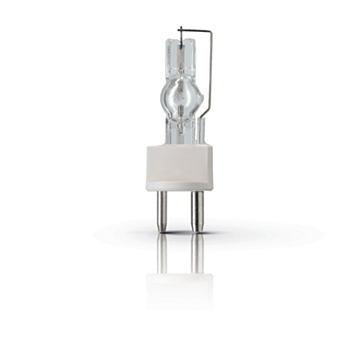

Philips Fémhalogén Lámpa MSR 2000/SA 230V/2000W SA GY22

Cikkszám: 8727900915730

213.500.-Ft

GPC kód: 928173205114


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR Short Arc family

    The lamp’s short arc and compact design helps enable a compact luminaire that provides high beam intensity, while the excellent color rendition characteristics help ensure optimal colors on stage. The highly innovative P3 technology, developed by Philips, allows MSR Short Arc lamps to be used at higher temperatures in any burning position. The result? Longer lifetime, fewer early failures and a highly consistent performance throughout the lamp’s lifetime.





    Features
    • Philips Pinch Protection
    • Short arc
    • Compact lamp design
    • MSR filling
    Applications
    • Entertainment
    System
    • Should preferably be operated on power-stabilised electronic ballasts, although magnetic ballasts can also be used






    MSR Short Arc – for longer life
    • Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
    • High beam intensity
    • Compact design luminaries
    • Excellent color characteristics, optimal colors on stage
    General Characteristics
    System Description Short Arc
    Cap-Base GY22
    Operating Position any
    Main Application Studio/Disco
    Life to 50% failures EM 750 hr

    Light Technical Characteristics
    Color Rendering Index 89 Ra8
    Color Temperature 6000 K
    Color Temperature Technical 6000 K
    Chromaticity Coordinate X 323 -
    Chromaticity Coordinate Y 334 -
    Luminous Flux Lamp EM 164000 (min), 174000 (nom) Lm
    Luminous Efficacy Lamp EM 88 Lm/W

    Electrical Characteristics
    Lamp Wattage 1800 W
    Lamp Wattage Technical 2000 W
    Lamp Current 21.5 A
    Ignition Supply Voltage 207 (min) V
    Dimmable Yes

    Luminaire Design Requirements
    Pinch Temperature 500 (max) C
    Bulb Temperature 1000 (max) C

    Product Dimensions
    Overall Length C 135 (max) mm
    Diameter D 34 (max) mm
    Light Center Length L 58 (min), 59 (nom), 60 (max) mm
    Arc Length O 7.0 mm

    Product Data
    Order code 928173205114
    Full product code 928173205114
    Full product name MSR 2000 SA 1CT
    Order product name MSR 2000 SA 1CT/8
    Pieces per pack 1
    Packing configuration 8
    Packs per outerbox 8
    Bar code on pack - EAN1 8727900915730
    Bar code on outerbox - EAN3 8727900915747
    Logistic code(s) - 12NC 928173205114
    Net weight per piece 0.096 kg


    Installation diagrams

    MSR 2000 SA 1CT+
    GY22+
    any+
