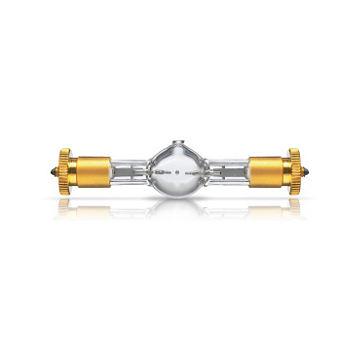

Philips Fémhalogén Lámpa MSR 575 SA/2 DE Gold 575W SFc-11

Cikkszám: 8727900914641

99.000.-Ft

GPC kód: 928175105114

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR Gold™ SA Double Ended family

    To optimize the total lifetime of the double ended MSR Gold™ SA Double Ended lamps, the caps are plated with gold. This provides superior heat protection and thereby minimizes premature failure of the lamp and lamp holder, as well as ensuring extended consistent performance. In addition, the highly innovative P3 technology, developed by Philips, allows the lamp to be used at higher temperatures, which further extends service life and consistency of high-quality light output.





    Features
    • Philips Pinch Protection
    • MSR filling
    • Gold plated lamp caps







    MSR Gold™ SA Double Ended – for extended performance
    • Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
    • Pure, white light; color point close to black body line. Consistent color impression over MSR Range
    • Reduces early lamp or lamp holder failures
    General Characteristics
    System Description SA/2 DE
    Cap-Base SFc-11
    Cap-Base Information SFc-11
    Operating Position any
    Main Application Entertainment
    Life to 50% failures EM 750 hr

    Light Technical Characteristics
    Color Code 2
    Color Rendering Index 75 Ra8
    Color Temperature 7500 K
    Color Temperature Technical 7500 K
    Chromaticity Coordinate X 294 -
    Chromaticity Coordinate Y 317 -
    Luminous Flux Lamp EM 39000 (min), 42000 (nom) Lm
    Luminous Efficacy Lamp EM 73 Lm/W

    Electrical Characteristics
    Lamp Wattage 575 W
    Lamp Wattage Technical 575 W
    Lamp Current 7 A
    Ignition Supply Voltage 198 (min) V
    Dimmable No

    Luminaire Design Requirements
    Pinch Temperature 400 (max) C

    Product Dimensions
    Base Face to Base Face A 69.6 (min), 70 (nom), 70.4 (max) mm
    Overall Length C 92 (max) mm
    Diameter D 18.5 (max) mm
    Arc Length O 5.0 mm

    Product Data
    Order code 928175105114
    Full product code 928175105114
    Full product name MSR Gold™ 575 SA/2 DE 1CT
    Order product name MSR Gold 575 SA/2 DE 1CT/40
    Pieces per pack 1
    Packing configuration 40
    Packs per outerbox 40
    Bar code on pack - EAN1 8727900914641
    Bar code on outerbox - EAN3 8727900914658
    Logistic code(s) - 12NC 928175105114
    Net weight per piece 0.032 kg


    Installation diagrams

    MSR Gold™ 575 SA/2 DE 1CT+
    SFc-11+
    any+
