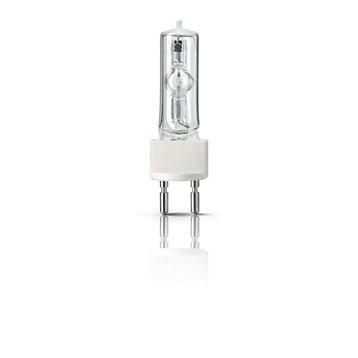

Philips Fémhalogén Lámpa MSR 1200/2 1200W G22

Cikkszám: 8727900911336

213.500.-Ft

GPC kód: 928171805114


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR family

    The high color rendering index of the single ended MSR series ensures that everyone in the audience can enjoy the true colors of the scenery, the stage props, the players and their costumes – in fact everything that is on stage can be made bright and vivid in daylight quality light. Also, thanks to the single ended lamp concept, the luminaire has optimal light collection and direction possibilities to help ensure brightness on stage exactly where and when it is needed. In addition, the MSR can be used in any burning position for easy set-up and convenience.





    Features
    • Single ended lamp concept
    • High CRI
    • Daylight Color Temperatures
    Applications
    • Theatre stages
    • Discos
    • Events
    • Shows
    System
    • Can be operated on an electronic power supply or a magnetic ballast-ignitor combination








    MSR – bright vivid colors, always
    • Optimal light collection
    • Excellent color characteristics
    • Brightness on stage
    General Characteristics
    System Description Cold Strike
    Cap-Base G22
    Cap-Base Information 30x53mm
    Operating Position any
    Main Application Studio/Disco
    Life to 50% failures EM 800 hr

    Light Technical Characteristics
    Color Code 2
    Color Rendering Index 85 Ra8
    Color Temperature 7200 K
    Color Temperature Technical 6700 K
    Chromaticity Coordinate X 302 -
    Chromaticity Coordinate Y 320 -
    Luminous Flux Lamp EM 80000 (min), 110000 (nom) Lm
    Luminous Efficacy Lamp EM 91 Lm/W

    Electrical Characteristics
    Lamp Wattage 1200 W
    Lamp Wattage Technical 1100 W
    Lamp Current 13.8 A
    Ignition Supply Voltage 207 (min) V
    Dimmable No

    Luminaire Design Requirements
    Pinch Temperature 350 (max) C
    Bulb Temperature 700 (max) C

    Product Dimensions
    Overall Length C 175 (max) mm
    Diameter D 40 (max) mm
    Width F 53 mm
    Light Center Length L 84 (min), 85 (nom), 86 (max) mm
    Arc Length O 10.0 mm

    Product Data
    Order code 928171805114
    Full product code 928171805114
    Full product name MSR 1200/2 1CT
    Order product name MSR 1200/2.1CT/3
    Pieces per pack 1
    Packing configuration 3
    Packs per outerbox 3
    Bar code on pack - EAN1 8727900911336
    Bar code on outerbox - EAN3 8727900911343
    Logistic code(s) - 12NC 928171805114
    Net weight per piece 0.150 kg


    Installation diagrams

    MSR 1200/2 1CT+
    G22+
    any+
