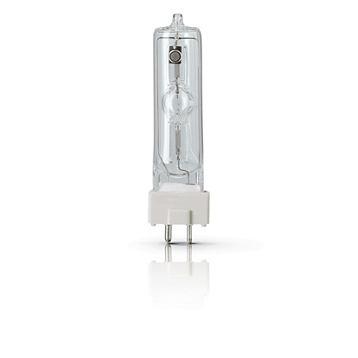

Philips Fémhalogén Lámpa MSD 250/2 90V GY9.5 Broadway

Cikkszám: 8718291228066

75.400.-Ft

GPC kód: 928099005115


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSD family

    These single ended, compact lamps enable optimal light collection and accurate beam control, while they also provide true daylight color temperatures – all to create great stage brightness and vivid entertainment. And since they offer long lifetime usage they help minimize the cost of ownership via fewer lamp replacements and fewer maintenance man hour costs.





    Features
    • Single ended lamp concept
    • Long life
    • Daylight color temperatures
    Applications
    • Display lighting
    • Disco lighting
    • Fibre optics




    MSD – right light, stage bright
    • Optimal light collection
    • Low cost of ownership
    • Brightness on stage
    General Characteristics
    Cap-Base GY9.5
    Operating Position any
    Main Application Studio/Disco
    Life to 50% failures EM 3000 hr

    Light Technical Characteristics
    Color Code 850
    Color Rendering Index 70 Ra8
    Color Temperature 8500 K
    Color Temperature Technical 8100 K
    Chromaticity Coordinate X 289 -
    Chromaticity Coordinate Y 305 -
    Luminous Flux Lamp EM 16000 (min), 18000 (nom) Lm
    Luminous Efficacy Lamp EM 72 Lm/W

    Electrical Characteristics
    Lamp Wattage 250 W
    Lamp Wattage Technical 250 W
    Lamp Current 3 A
    Ignition Supply Voltage 207 (min) V
    Dimmable No

    Luminaire Design Requirements
    Pinch Temperature 350 (max) C
    Bulb Temperature 500 (max) C

    Product Dimensions
    Overall Length C 108 (max) mm
    Diameter D 23 (max) mm
    Width F 27 (min), 28 (nom), 29 (max) mm
    Light Center Length L 54 (min), 55 (nom), 56 (max) mm
    Arc Length O 5.0 mm

    Product Data
    Order code 928099005115
    Full product code 928099005115
    Full product name MSD 250/2 30H 1CT
    Order product name MSD 250/2 30H 1CT/4
    Pieces per pack 1
    Packing configuration 4
    Packs per outerbox 4
    Bar code on pack - EAN1 8718291228066
    Bar code on outerbox - EAN3 8718291228073
    Logistic code(s) - 12NC 928099005115
    Net weight per piece 0.030 kg


    Installation diagrams

    MSD 250/2 30H 1CT+
    GY9.5+
    any+
