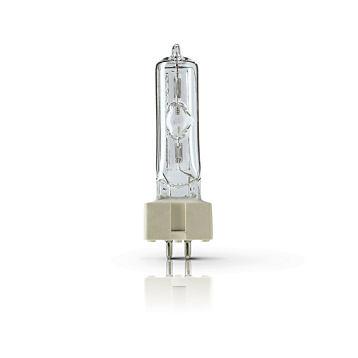

Philips Fémhalogén Lámpa MSR 575/2 575W GX9.5
Cikkszám: 8718291221272
73.000.-Ft
GPC kód: 928171605115
Energia besorolás: B
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Single ended lamp concept
- High CRI
- Daylight Color Temperatures
- Theatre stages
- Discos
- Events
- Shows
- Can be operated on an electronic power supply or a magnetic ballast-ignitor combination
- Optimal light collection
- Excellent color characteristics
- Brightness on stage
The MSR family
The high color rendering index of the single ended MSR series ensures that everyone in the audience can enjoy the true colors of the scenery, the stage props, the players and their costumes – in fact everything that is on stage can be made bright and vivid in daylight quality light. Also, thanks to the single ended lamp concept, the luminaire has optimal light collection and direction possibilities to help ensure brightness on stage exactly where and when it is needed. In addition, the MSR can be used in any burning position for easy set-up and convenience.
Features
Applications
System
MSR – bright vivid colors, always
General Characteristics
| System Description | Cold Strike |
| Cap-Base | GX9.5 |
| Cap-Base Information | 20mm |
| Operating Position | any |
| Main Application | Studio/Disco |
| Life to 50% failures EM | 1000 hr |
Light Technical Characteristics
| Color Code | 2 |
| Color Rendering Index | 70 Ra8 |
| Color Temperature | 7200 K |
| Color Temperature Technical | 6990 K |
| Chromaticity Coordinate X | 302 - |
| Chromaticity Coordinate Y | 320 - |
| Luminous Flux Lamp EM | 39000 (min), 49000 (nom) Lm |
| Luminous Efficacy Lamp EM | 85 Lm/W |
Electrical Characteristics
| Lamp Wattage | 575 W |
| Lamp Wattage Technical | 575 W |
| Lamp Current | 6.95 A |
| Ignition Supply Voltage | 207 (min) V |
| Dimmable | No |
Luminaire Design Requirements
| Pinch Temperature | 350 (max) C |
| Bulb Temperature | 700 (max) C |
Product Dimensions
| Overall Length C | 125 (max) mm |
| Diameter D | 30 (max) mm |
| Width F | 34 (min), 35 (nom), 36 (max) mm |
| Light Center Length L | 64 (min), 65 (nom), 66 (max) mm |
| Arc Length O | 7.0 mm |
Product Data
| Order code | 928171605115 |
| Full product code | 928171605115 |
| Full product name | MSR 575/2 10H 1CT |
| Order product name | MSR 575/2 10H 1CT/4 |
| Pieces per pack | 1 |
| Packing configuration | 4 |
| Packs per outerbox | 4 |
| Bar code on pack - EAN1 | 8718291221272 |
| Bar code on outerbox - EAN3 | 8718291221289 |
| Logistic code(s) - 12NC | 928171605115 |
| Net weight per piece | 0.057 kg |
Installation diagrams
MSR 575/2 10H 1CT+
GX9.5+
any+
