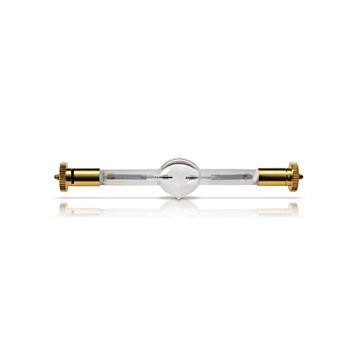

Philips Fémhalogén Lámpa MSR 1200 SA/DE Gold 1200W SFC10-4

Cikkszám: 8718291221210

124.000.-Ft

GPC kód: 928099605115


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR Gold™ SA Double Ended family

    To optimize the total lifetime of the double ended MSR Gold™ SA Double Ended lamps, the caps are plated with gold. This provides superior heat protection and thereby minimizes premature failure of the lamp and lamp holder, as well as ensuring extended consistent performance. In addition, the highly innovative P3 technology, developed by Philips, allows the lamp to be used at higher temperatures, which further extends service life and consistency of high-quality light output.





    Features
    • Philips Pinch Protection
    • MSR filling
    • Gold plated lamp caps







    MSR Gold™ SA Double Ended – for extended performance
    • Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time
    • Pure, white light; color point close to black body line. Consistent color impression over MSR Range
    • Reduces early lamp or lamp holder failures
    General Characteristics
    System Description SA/DE
    Cap-Base SFC10-4
    Cap-Base Information SFC10-4
    Operating Position any
    Main Application Entertainment
    Life to 50% failures EM 750 hr

    Light Technical Characteristics
    Color Rendering Index 85 Ra8
    Color Temperature 6000 K
    Color Temperature Technical 6000 K
    Chromaticity Coordinate X 326 -
    Chromaticity Coordinate Y 332 -
    Luminous Flux Lamp EM 98000 (min), 106000 (nom) Lm
    Luminous Efficacy Lamp EM 91 Lm/W

    Electrical Characteristics
    Lamp Wattage 1200 W
    Lamp Wattage Technical 1200 W
    Lamp Current 13.6 A
    Ignition Supply Voltage 198 (min) V
    Dimmable No

    Product Dimensions
    Base Face to Base Face A 114.4 (min), 114.8 (nom), 115.2 (max) mm
    Overall Length C 136 (max) mm
    Diameter D 22 (max) mm
    Arc Length O 7.0 mm

    Product Data
    Order code 928099605115
    Full product code 928099605115
    Full product name MSR Gold™ 1200 SA/DE 1CT
    Order product name MSR Gold 1200 SA/DE 1CT/4
    Pieces per pack 1
    Packing configuration 4
    Packs per outerbox 4
    Bar code on pack - EAN1 8718291221210
    Bar code on outerbox - EAN3 8718291221227
    Logistic code(s) - 12NC 928099605115
    Net weight per piece 0.034 kg


    Installation diagrams

    MSR Gold™ 1200 SA/DE 1CT+
    SFC10-4+
    any+
