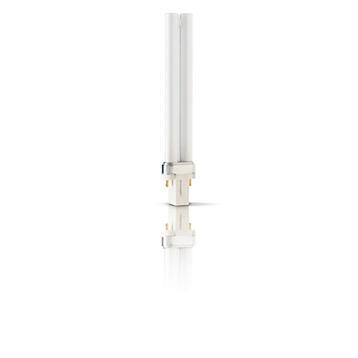

Philips Actinic BL PL-S 9W/10 2p

Cikkszám: 8711500951946

2.300.-Ft

GPC kód: 927901721008

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The Actinic BL PL-S/PL-L family

    With an optimized spectrum matching the eye sensitivity of the housefly, Actinic BL TL(-K)/TL-D(-K)/TL-E/PL-S and PL-L lamps are perfect for attracting insects. They have virtually no UV-B output, and so are perfectly safe. What's more, with the lowest mercury content in the industry and being 100% lead-free, these lamps represent a very good environmental choice. Furthermore, the availability of a wide range of form factors (straight (T5, T8, T12), circular (TL-E) and compact (PL-S/PL-L)) and wattages enables you to make all kinds of designs for your electronic fly killers.





    Features
    • Emits long-wave UV-A radiation in the 350-400nm range
    • UV-B/UV-A ratio less than 0.1 % (UV-B 280-315nm)
    • 100% lead-free
    • Low mercury content
    • Compact lamp format
    Applications
    • Insect traps, Electronic Fly Killers (EFKs)






    Actinic BL PL-S/PL-L – compact for design freedom
    • Perfectly matches the eye sensitivity of houseflies and in this way attracts more insects
    • Safe for use
    • Good environmental choice
    • Design freedom
    General Characteristics
    Cap-Base G23
    Cap-Base Information 2 Pins
    Bulb 2xT12
    Execution 2 Pins
    Main Application Phototherapy
    Useful Life 2000 hr

    Light Technical Characteristics
    Color Code 210 [leadfree 360 glass]
    Color Designation (text) Ultra Violet A
    Chromaticity Coordinate X 227 -
    Chromaticity Coordinate Y 212 -
    Depreciation 2000 hours 20 %

    Electrical Characteristics
    Lamp Wattage 9 W
    Lamp Wattage Technical 8.6 W
    Lamp Voltage 60 V
    Lamp Current 0.17 A

    UV-related Characteristics
    UV-A Radiation 100hr (IEC) 1.66 W
    UV-B/UV-A (IEC) 0.1 %

    Product Dimensions
    Base Face to Base Face A 128.8 (max) mm
    Insertion Length B 144.5 (max) mm
    Overall Length C 167 (max) mm
    Diameter D 28 (max) mm
    Diameter D1 13 (max) mm

    Product Data
    Order code 927901721008
    Full product code 927901721008
    Full product name Actinic BL PL-S 9W/10/2P 1CT
    Order product name Actinic BL PL-S 9W/10/2P 1CT/6X10CC
    Pieces per pack 1
    Packing configuration 6X10CC
    Packs per outerbox 60
    Bar code on pack - EAN1 8711500951946
    Bar code on intermediate packing - EAN2 8711500951953
    Bar code on outerbox - EAN3 8711500951960
    Logistic code(s) - 12NC 927901721008
    Net weight per piece 32.000 gr


    Installation diagrams

    Actinic BL PL-S 9W/10/2P 1CT+
    G23+
