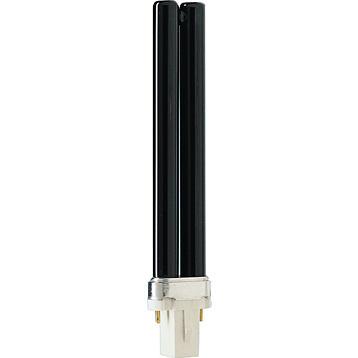

Philips BLB PL-S 9W/108 2P

Cikkszám: 8711500950901

8.300.-Ft

GPC kód: 927901710807

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The PL-S Blacklight Blue family

    PL-S Blacklight Blue is a special low-wattage compact fluorescent lamp emitting long wave UV radiation for detection and analysis purposes in archaeology, money checking, forensic science, food industry, medicine, mineralogy, philately as well for special effects in night clubs, discos, theatres and sign lighting. The 2-pin version is designed for operation on electromagnetic gear, the 4-pin version is designed for operation on electronic gear. Both versions are provided with a plug-in/pull-out lamp base.





    Features
    • Long wave UV fluorescent phosphor technology
    • 2-pin version: 2-pin base with a housing incorporating the special instant starter and capacitor
    • 4-pin version: 4-pin base
    Applications
    • Detection and analysis in the textile and chemical industries
    • Banking and forensic science
    • Special effects in night clubs, discos and theatres, and sign lighting





    For reliable unveiling of secrets!
    • Quick detection of UV reflecting materials
    • Creates special lighting atmospheres and effects
    • 4-pin version: flicker-free start, and dimming possible down to 10%
    General Characteristics
    Cap-Base G23 [Two-Pin Compact Fluorescent; low preheat current; two retainers]
    Cap-Base Information 2 Pins
    Bulb 2xT12
    Main Application Blacklight Blue
    Useful Life 3000 hr

    Light Technical Characteristics
    Colour Code 108 [08 lead free glass]
    Colour Designation Blacklight Blue

    Electrical Characteristics
    Lamp Wattage 9 W
    Technical Lamp Power 8.6 W
    Lamp Voltage 60 V
    Lamp Current 0.17 A

    Environmental Characteristics
    Mercury (Hg) Content 3.0 mg

    UV-related Characteristics
    UV-A Power (IEC) 1.65 W
    UV-B/UV-A (IEC) 0.2 %

    Product Dimensions
    Base Face to Base Face A 129.0 (max) mm
    Insertion Length B 145.0 (max) mm
    Overall Length C 167.5 (max) mm
    Diameter D 28.0 (max) mm
    Diameter D1 13.0 (max) mm

    Product Data
    Order code 950901 80
    Full product code 871150095090180
    Full product name PL-S 9W BLB/2P 1CT
    Order product name PL-S 9W BLB/2P 1CT/6X10CC
    Pieces per pack 1
    Packing configuration 6X10CC
    Packs per outerbox 60
    Bar code on pack - EAN1 8711500950901
    Bar code on intermediate packing - EAN2 8711500950918
    Bar code on outerbox - EAN3 8711500950925
    Logistic code(s) - 12NC 927901710807
    Net weight per piece 33.700 gr


    Installation diagrams

    PL-S 9W BLB/2P 1CT+
    G23+
