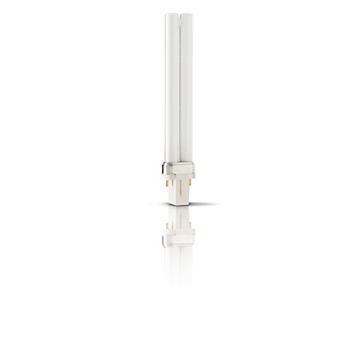

Philips PL-S 9W/01 2p G23

Cikkszám: 8711500868916


GPC kód: 927901700121

Energia besorolás: B

Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The UV-B Narrowband PL-L/PL-S family

    More than 400 independent clinical studies have proven that the UVB Narrowband PL-L/PL-S lamps are safer and more effective than any other lamps in their class. The PL-L/PL-S versions provide additional design freedom for system manufacturers since these are space-saving compact, single-ended lamps. Further flexibility is assured since they use the same lamp caps as general lighting lamps, they also use the same universal ballasts. Their best-in-class treatment effectiveness is a result of their very narrow waveband emission: between 305 and 315 nm with a peak at 311 nm. This is the most efficacious waveband for the treatment of psoriasis, and is therefore much more focused. As a result, exposure times are much shorter and this in turn leads to a reduction of side effects such as reddening of the skin and itching. All of this makes them ideal for phototherapy treatment of diseases such as psoriasis, parapsoriasis, vitiligo, atopic dermatitis, and mycosis fungoides. What’s more, because the overall dosage of this narrowband radiation can be closely controlled, these lamps are suitable for home therapy.



    • Emission peak at 311 nm
    • Narrowband
    • Special developed phosphor and glass
    • World wide tested in more than 400 clinical tests
    • Psoriasis, Parapsoriasis, Vitiligo, Atopic Dermatitis, Mycosis fungoides, Other skin diseases
    UVB Narrowband PL-L/PL-S – most effective phototherapy lamp plus design freedom
    • Minimum side effects like redness, itching and burns
    • Shorter period of exposure and less erythemal radiation than conventional UVB lamps
    • Optimal therapeutic effect with minimum side effects
    • Proven to be most effective on the skin
    General Characteristics
    Cap-Base G23
    Cap-Base Information 2 Pins
    Bulb 2xT12
    Main Application Phototherapy
    Useful Life 1000 hr
    Life to 50% failures EM 1000 hr
    Light Technical Characteristics
    Color Code 01
    Color Designation (text) Ultra Violet B
    Depreciation 500 hours 15 %
    Depreciation 1000 hours 20 %
    Electrical Characteristics
    Lamp Wattage 9 W
    Lamp Wattage Technical 8.6 W
    Lamp Voltage 60 V
    Lamp Current 0.17 A
    UV-related Characteristics
    UV-B Radiation 100hr (IEC) 0.95 W
    UV-B Radiation 5hr (IEC) 1.2 W
    Product Dimensions
    Base Face to Base Face A 129 (max) mm
    Insertion Length B 144.5 (max) mm
    Overall Length C 167 (max) mm
    Diameter D 28 (max) mm
    Diameter D1 13 (max) mm
    Product Data
    Order code 927901700121
    Full product code 927901700121
    Full product name PL-S 9W/01/2P 1CT
    Order product name PL-S 9W/01/2P 1CT/6X10BOX
    Pieces per pack 1
    Packing configuration 6X10CC
    Packs per outerbox 60
    Bar code on pack - EAN1 8711500868916
    Bar code on intermediate packing - EAN2 8711500868923
    Bar code on outerbox - EAN3 8711500868930
    Logistic code(s) - 12NC 927901700121
    Net weight per piece 32.000 gr

    Installation diagrams

    PL-S 9W/01/2P 1CT+
