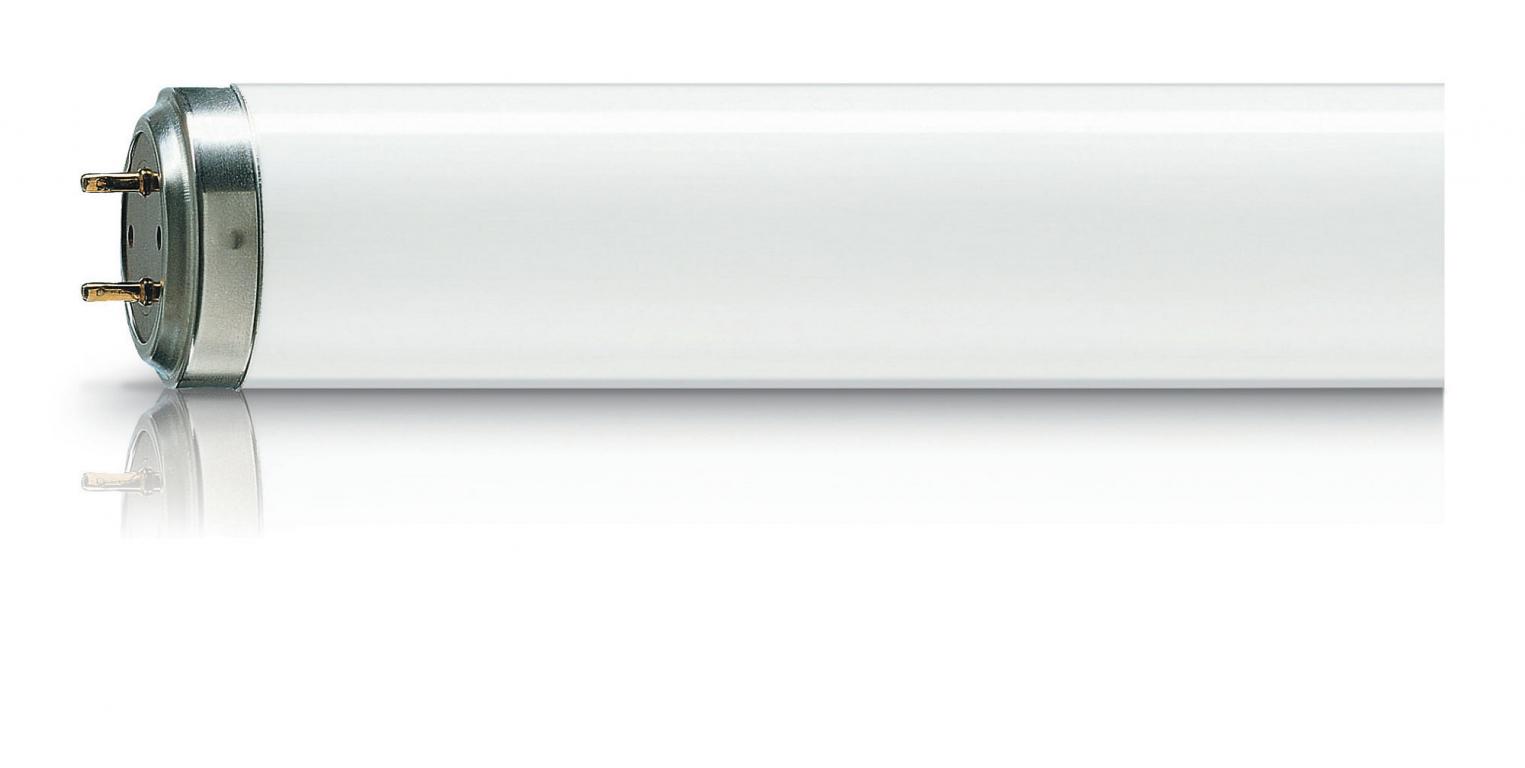

Philips TL 20W/52

Cikkszám: 8711500643025

5.500.-Ft

GPC kód: 928003505203

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    Medical Therapy Jaundice TL/TL-D

    By emitting light almost entirely within the 400 to 500 nm bandwidth these Medical Therapy Jaundice TL/TL-D /52 lamps have no radiation from the short wave UVB waveband. They are therefore ideal for treating new born babies suffering from hyperbilirubinemia (neonatal jaundice) and Crigler-Najjar Syndrome (CNS). Moreover, the bandwidth of these lamps peak at the most effective treatment wavelength of 450 nm. This highly efficacious phototherapy treatment has eliminated the need for blood transfusions in almost all jaundiced infants.

    General Characteristics
    Cap-Base G13
    Bulb T38
    Main Application Medical Therapy
    Useful Life 2000 hr
    Life to 50% failures EM 9000 hr

    Light Technical Characteristics
    Color Code 52
    Color Designation (text) Medical
    Chromaticity Coordinate X 154 -
    Chromaticity Coordinate Y 69 -
    Luminous Flux Lamp EM 360 Lm
    Lumen Maintenance 2000h 85 %
    Lumen Maintenance 5000h 75 %
    Depreciation 2000 hours 20 %

    Electrical Characteristics
    Lamp Wattage 20 W
    Lamp Wattage Technical 19.3 W
    Lamp Voltage 57 V
    Lamp Current 0.37 A
    Dimmable No

    Environmental Characteristics
    Mercury (Hg) Content 8.0 mg

    Product Dimensions
    Base Face to Base Face A 589.8 (max) mm
    Insertion Length B 594.5 (min), 596.9 (max) mm
    Overall Length C 604 (max) mm
    Diameter D 40.5 (max) mm

    Product Data
    Order code 928003505203
    Full product code 928003505203
    Full product name TL 20W/52 SLV
    Order product name TL 20W/52 SLV/25
    Pieces per pack 1
    Packing configuration 25
    Packs per outerbox 25
    Bar code on pack - EAN1 8711500643025
    Bar code on outerbox - EAN3 8711500643032
    Logistic code(s) - 12NC 928003505203
    Net weight per piece 156.000 gr


    Installation diagrams

    TL 20W/52 SLV+
    G13+
