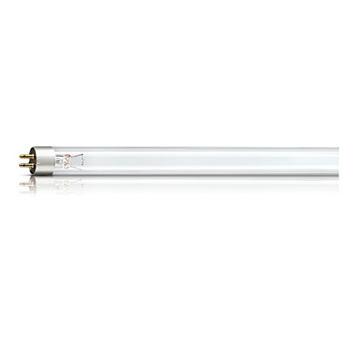

Philips Germicid TUV TL 4W G5

Cikkszám: 8711500638724

2.100.-Ft

GPC kód: 928000104013

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The TUV TL Mini family

    TUV TL Mini lamps are slim double-ended UVC (germicidal) lamps used in residential water and air disinfection units. The small 16 mm diameter of the lamp allows for a small system design and design flexibility. TUV TL Mini lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy.





    Features
    • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
    • Protective inside coating ensures almost constant UV output over the complete lifetime of the lamp
    • Special lamp glass filters out the 185 nm ozone-forming radiation
    • Warning sign on lamp indicates that the lamp radiates UVC
    Applications
    • Deactivation of bacteria, viruses and other micro-organisms
    • Residential drinking water units
    • Fish pond water units
    • In-duct air treatment units
    • Stand alone air purifiers







    TUV TL Mini - Small diameter lamps for residential applications
    • Security of effective disinfection over the useful lifetime of the lamp
    • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
    • Good environmental choice because of lowest amount of mercury
    General Characteristics
    Cap-Base G5
    Bulb T16
    Main Application Disinfection
    Useful Life 6000 hr

    Electrical Characteristics
    Lamp Wattage 4 W
    Lamp Wattage Technical 4 W
    Lamp Voltage 29 V
    Lamp Current 0.17 A

    Environmental Characteristics
    Mercury (Hg) Content 4.4 mg

    UV-related Characteristics
    UV-C Radiation 0.9 W

    Product Dimensions
    Reference Length A 135.9 (max) mm
    Insertion Length B 140.6 (min), 143 (max) mm
    Overall Length C 150.1 (max) mm
    Diameter D 16 (max) mm

    Product Data
    Order code 928000104013
    Full product code 928000104013
    Full product name TUV 4W FAM
    Order product name TUV 4W FAM/10X25BOX
    Pieces per pack 1
    Packing configuration 10X25CC
    Packs per outerbox 250
    Bar code on pack - EAN1 8711500638724
    Bar code on intermediate packing - EAN2 8711500638731
    Bar code on outerbox - EAN3 8711500638748
    Logistic code(s) - 12NC 928000104013
    Net weight per piece 18.600 gr


    Installation diagrams

    TUV 4W FAM+
    G5+
