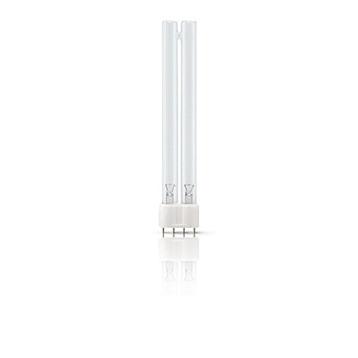

Philips Germicid TUV PL-L 36W 4P 2G11

Cikkszám: 8711500628787

7.200.-Ft

GPC kód: 927903404007


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The TUV PL-L family

    TUV PL-L lamps are compact UVC (germicidal) lamps used in professional water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-L lamps offer almost constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.





    Features
    • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
    • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
    • Special lamp glass filters out the 185 nm ozone-forming radiation
    • High Output versions contain wind-chill correction for improved performance in moving air and reducing amount of required lamps
    • High Output versions for optimum UVC output per lamp length, allowing for reduction of system size
    • Warning sign on lamp indicates that the lamp radiates UVC
    Applications
    • Deactivation of bacteria, viruses and other micro-organisms
    • Residential drinking water units
    • Fish pond and process water units
    • In-duct air treatment units
    • Stand alone air purifiers
    • Air disinfection systems in for example hospitals, universities and laboratories











    TUV PL-L - Compact solution for professional applications
    • Security of effective disinfection over the useful lifetime of the lamp
    • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
    General Characteristics
    Cap-Base 2G11
    Cap-Base Information 4 Pins
    Bulb 2xT16
    Main Application Disinfection
    Useful Life 9000 hr

    Light Technical Characteristics
    Color Code TUV

    Electrical Characteristics
    Lamp Wattage 36 W
    Lamp Wattage Technical 36 W
    Lamp Voltage 105 V
    Lamp Current 0.44 A

    UV-related Characteristics
    UV-C Radiation 12.0 W

    Product Dimensions
    Base Face to Base Face A 385 (max) mm
    Insertion Length B 410 (max) mm
    Overall Length C 415 (max) mm
    Diameter D 38 (max) mm
    Diameter D1 18 (max) mm

    Product Data
    Order code 927903404007
    Full product code 927903404007
    Full product name TUV PL-L 36W/4P 1CT
    Order product name TUV PL-L 36W/4P 1CT/25
    Pieces per pack 1
    Packing configuration 25
    Packs per outerbox 25
    Bar code on pack - EAN1 8711500628787
    Bar code on outerbox - EAN3 8711500628794
    Logistic code(s) - 12NC 927903404007
    Net weight per piece 104.000 gr


    Installation diagrams

    TUV PL-L 36W/4P 1CT+
    2G11+
