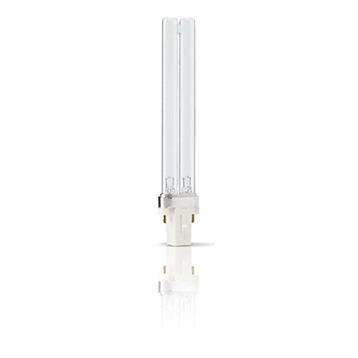

Philips Germicid TUV PL-S 11W/2P G23

Cikkszám: 8711500624888

4.000.-Ft

GPC kód: 927902304007


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The TUV PL-S family

    TUV PL-S lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. TUV PL-S lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.





    Features
    • Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
    • Protective inside coating ensures constant UV output over the complete lifetime of the lamp
    • Lamp glass filters out the 185 nm ozone-forming radiation
    • 2-Pin PL-S lamp base contains a special starter for almost instant starting on electromagnetic drivers
    • 4-Pin PL-S lamps are designed for use on electronic drivers
    • Warning sign on lamp indicates that the lamp radiates UVC
    Applications
    • Deactivation of bacteria, viruses and other micro-organisms
    • Residential drinking water units
    • Pond water units
    • Air treatment units
    • Stand-alone purifiers










    TUV PL-S - Compact solution for residential applications
    • Security of effective disinfection over the useful lifetime of the lamp
    • High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection
    • Good environmental choice because of lowest amount of mercury
    General Characteristics
    Cap-Base G23
    Cap-Base Information 2 Pins
    Bulb 2xT12
    Execution 2 Pins
    Main Application Disinfection
    Useful Life 9000 hr

    Light Technical Characteristics
    Color Code TUV

    Electrical Characteristics
    Lamp Wattage 11 W
    Lamp Wattage Technical 11 W
    Lamp Voltage 89 V
    Lamp Current 0.16 A

    UV-related Characteristics
    UV-C Radiation 3.2 W

    Product Dimensions
    Base Face to Base Face A 198 (max) mm
    Insertion Length B 213.3 (max) mm
    Overall Length C 236 (max) mm
    Diameter D 28 (max) mm
    Diameter D1 13 (max) mm

    Product Data
    Order code 927902304007
    Full product code 927902304007
    Full product name TUV PL-S 11W/2P 1CT
    Order product name TUV PL-S 11W/2P 1CT/6X10BOX
    Pieces per pack 1
    Packing configuration 6X10CC
    Packs per outerbox 60
    Bar code on pack - EAN1 8711500624888
    Bar code on intermediate packing - EAN2 8711500624895
    Bar code on outerbox - EAN3 8711500624901
    Logistic code(s) - 12NC 927902304007
    Net weight per piece 53.230 gr


    Installation diagrams

    TUV PL-S 11W/2P 1CT+
    G23+
