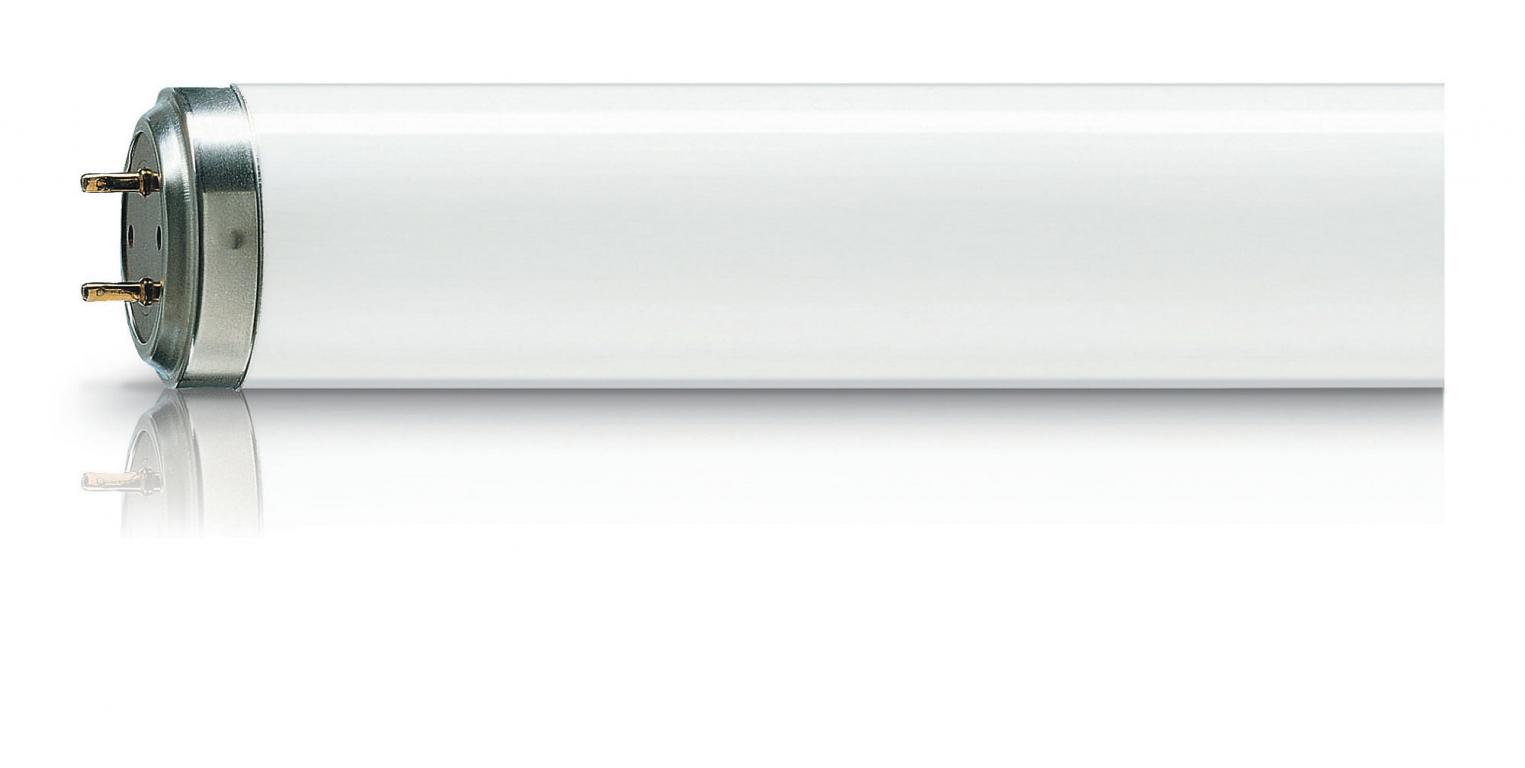

Philips TL 100W/10-R

Cikkszám: 8711500612816

10.900.-Ft

GPC kód: 928006901012


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    Flexo Print

    Nowadays the preferred radiotherapy treatment of skin diseases like psoriasis is through the use of the ‘B’ bandwidth of the UV spectrum (290 to 315 nm), since this requires no photo-sensitizing agent. But some patients do not respond to UVB treatment, hence a UV lamp with an ‘A’ bandwidth of the UV spectrum is used, and here Philips offers a choice of either TL or PLS/PLL lamps. Both are ideal for when the UVB is unsuitable. These (PUVA) lamps have a wavelength of between 315 to 380 nm and are not only used for the treatment of psoriasis but are also commonly used for more than 20 other diseases.











    General Characteristics
    Cap-Base G13
    Bulb T38
    Main Application Phototherapy
    Useful Life 1000 hr
    Life to 50% failures EM 2000 hr

    Light Technical Characteristics
    Color Code 10-R
    Color Designation (text) Ultra Violet A
    Chromaticity Coordinate X 220 -
    Chromaticity Coordinate Y 200 -
    Depreciation 500 hours 10 %
    Depreciation 1000 hours 20 %
    Depreciation 2000 hours 30 %

    Electrical Characteristics
    Lamp Wattage 100 W
    Lamp Wattage Technical 100 W
    Lamp Voltage 122 V
    Lamp Current 0.97 A

    Environmental Characteristics
    Mercury (Hg) Content 13.0 mg

    UV-related Characteristics
    UV-A Radiation 100hr (IEC) 26.6 W
    UV-B/UV-A (IEC) 0.1 %
    UV-A Radiation 0hr (IEC) 28.0 W

    Product Dimensions
    Base Face to Base Face A 1763.8 (max) mm
    Insertion Length B 1768.5 (min), 1770.9 (max) mm
    Overall Length C 1778 (max) mm
    Diameter D 40.5 (max) mm

    Product Data
    Order code 928006901012
    Full product code 928006901012
    Full product name TL 100W/10-R SLV
    Order product name TL 100W/10-R SLV/25
    Pieces per pack 1
    Packing configuration 25
    Packs per outerbox 25
    Bar code on pack - EAN1 8711500612816
    Bar code on outerbox - EAN3 8727900783827
    Logistic code(s) - 12NC 928006901012
    Net weight per piece 391.600 gr




    Installation diagrams

    100W/10-R UV-A+
