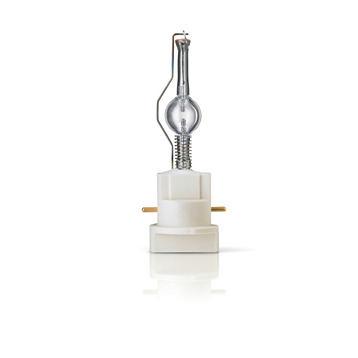

Philips MSR Platinum 35 1 CT 800W 220 - 240 V PGJX36

Cikkszám: 8718291120063

152.000.-Ft

GPC kód: 928190905114

Energia besorolás: B


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The MSR Platinum (Touring/Stage) family

    Today’s stage designs call for lighting solutions which deliver high brightness and high-contrast beams to avoid shadow creation, as well as more compact luminaire and fixture designs to improve creative choice and design flexibility. Addressing this need, we have developed an incredibly powerful, brilliant and lightweight, compact system for the most amazing light experience – MSR Platinum 35. This lamp system provides a powerful and innovative tool to create intense lighting and delivers the same good light quality as other MSR lamps. The exceptionally short arc generates sparkling, bright light and this ultra-compact design makes the lamp suitable for smaller stage lighting fixtures, MSR Platinum 35 gives lighting designers far greater freedom in positioning luminaires.





    Features
    • Very short arc
    • Compact system
    • High Correlated color temperature
    • Philips FastFit technology
    • Philips Platinum technology





    MSR Platinum 35 – enhanced stage lighting
    • High beam intensity, high brightness
    • Freedom to create smaller and lighter fixtures
    • High perceived brightness
    • Easy and fast lamp replacement
    • A long and reliable lifetime
    General Characteristics
    Cap-Base PGJX36
    Cap-Base Information PGJX36
    Operating Position any
    Main Application Entertainment
    Life to 50% failures EM 1000 hr

    Light Technical Characteristics
    Color Code 2
    Color Rendering Index 73 Ra8
    Color Temperature 7750 K
    Color Temperature Technical 7750 K
    Chromaticity Coordinate X 0.295 -
    Chromaticity Coordinate Y 0.313 -
    Luminous Flux Lamp EM 51500 (min), 57800 (nom) Lm
    Luminous Efficacy Lamp EM 70 Lm/W
    Color Rendering Index (SO) 60.5 (min), 64.5 (nom) Ra8
    Chromaticity Coordinate X (SO) 0.2913 (min), 0.2998 (nom), 0.3084 (max) -
    Chromaticity Coordinate Y (SO) 0.3063 (min), 0.3204 (nom), 0.3345 (max) -
    Color Temperature (SO) 6650 (min), 7350 (nom), 8050 (max) K
    Luminous Flux (SO) 31500 (min), 36500 (nom) Lm
    Luminous Efficacy Lamp (SO) 38 (min), 42.5 (nom) Lm/W

    Electrical Characteristics
    Lamp Wattage 800 W
    Lamp Wattage Technical 800 W
    Lamp Current 12.3 A
    Ignition Supply Voltage 220 (min) V
    Dimmable Yes

    Luminaire Design Requirements
    Pinch Temperature 450 (max) C
    Bulb Temperature 950 (max) C

    Product Dimensions
    Overall Length C 116 (max) mm
    Diameter D 23.5 (max) mm
    Light Center Length L 55 (min), 56 (nom), 57 (max) mm
    Arc Length O 3.0 mm

    Product Data
    Order code 928190905114
    Full product code 928190905114
    Full product name MSR Platinum 35 1CT
    Order product name MSR Platinum 35 1CT
    Pieces per pack 1
    Packing configuration 16
    Packs per outerbox 16
    Bar code on pack - EAN1 8718291120063
    Bar code on outerbox - EAN3 8718291120070
    Logistic code(s) - 12NC 928190905114
    Net weight per piece 0.053 kg


    Installation diagrams

    MSR Platinum 35 1CT+
    PGJX36+
    any+
