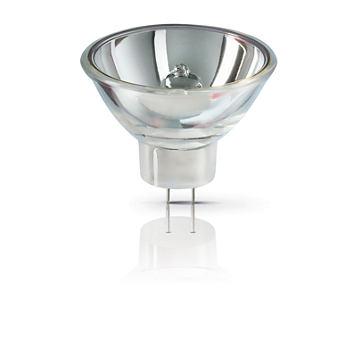

Philips 6423 FO 150W 15V GZ6.35 Focusline Fibre Optics

Cikkszám: 8711500427335


GPC kód: 923916818504

Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The Halogen reflector family

    Philips’ halogen reflector lamps offer the ideal no-fuss solution for a wide variety of medical, projection and scientific illumination systems. Their proven reliability makes them ideal for retrofit installations. The burners are precisely aligned for optimal light performance. Dichroic reflectors ensure heat dissipation towards the back of the optical system, which helps the optical system remain within temperature limits. A special blue-filter version blocking out unwanted light above 700 nm is available for dental curing applications. In addition, you get all the proven advantages of halogen technology such as a CRI of 100 – the same as natural sunlight for the best possible color rendering. Halogen lamps also create a comfortable warm white light, and they maintain their high lumen output with almost no lumen reduction throughout their lifetime.



    • Excellent distortion-free quartz bulb
    • Dichroic coating ensures dissipation of approximately 75% of the generated heat backwards
    • Medical endoscopy
    • Industrial endoscopy
    • Fiber optic illumination
    • Dental curing
    • Projection systems
    • Microfiche
    • Spectrography
    Halogen reflector lamps – proven reliability
    • Optimal light performance
    • Remains within temperature limits
    • No re-alignment necessary when lamp is replaced
    General Characteristics
    Philips Code 6423FO
    ANSI Code EFR
    LIF Code A1/232
    Cap-Base GZ6.35
    Bulb R50
    Bulb Material Quartz-UV Open
    Reflector Finish Smooth
    Operating Position s105
    Main Application Projection
    Life to 50% failures 50 hr
    Electrical Characteristics
    Lamp Wattage 150 W
    Voltage 15 V
    Light Technical Characteristics
    Color Rendering Index 100 Ra8
    Color Temperature Technical 3400 K
    Product Dimensions
    Overall Length C 42 (max) mm
    Diameter D 50 (max) mm
    Luminaire Design Requirements
    Pinch Temperature 400 (max) C
    Bulb Temperature 900 (max) C
    Working Distance WD 32 mm
    Product Data
    Order code 923916818504
    Full product code 923916818504
    Full product name 6423 FO 150W GZ6.35 15V 1CT
    Order product name 6423 FO 150W GZ6.35 15V 1CT/10X5F
    Pieces per pack 1
    Packing configuration 10X5F
    Packs per outerbox 50
    Bar code on pack - EAN1 8711500409713
    Bar code on intermediate packing - EAN2 8711500409713
    Bar code on outerbox - EAN3 871150040971360
    Logistic code(s) - 12NC 923916818504
    Net weight per piece 23.200 gr

    Installation diagrams

    GX5.3, GY5.3, GZ6.35+
