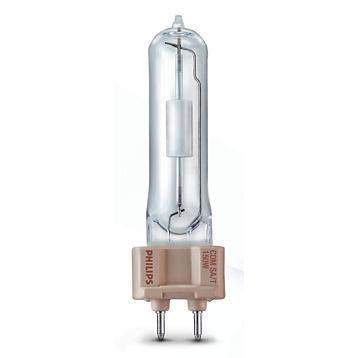

Philips CDM-SA/T 150W/942 G12
Cikkszám: 8711500200945
30.500.-Ft
GPC kód: 928086605103
Energia besorolás: G
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
General Characteristics
| Cap-Base | G12 |
| Operating Position | any |
| Main Application | Dynamic Architectural |
| Life to 50% failures | 9000 hr |
Light Technical Characteristics
| Color Code | 942 |
| Color Rendering Index | 95 Ra8 |
| Color Designation (text) | Cool White |
| Color Temperature | 4200 K |
| Color Temperature Technical | 3900 K |
| Chromaticity Coordinate X | 370 - |
| Chromaticity Coordinate Y | 360 - |
| Luminous Flux Lamp EM | 12600 (min), 14000 (nom) Lm |
| Luminous Efficacy Lamp EM | 88 Lm/W |
Electrical Characteristics
| Lamp Wattage | 150 W |
| Lamp Wattage Technical | 153 W |
| Lamp Current | 1.8 A |
| Ignition Supply Voltage | 198 (min) V |
| Dimmable | No |
Environmental Characteristics
| Mercury (Hg) Content | 11.9 (max) mg |
Luminaire Design Requirements
| Pinch Temperature | 350 (max) C |
| Bulb Temperature | 650 (max) C |
Product Dimensions
| Overall Length C | 110 (max) mm |
| Diameter D | 20 (max) mm |
| Width F | 29 (min), 30 (nom), 31 (max) mm |
| Light Center Length L | 55 (min), 56 (nom), 57 (max) mm |
| Arc Length O | 6 mm |
Product Data
| Order code | 928086605103 |
| Full product code | 928086605103 |
| Full product name | CDM-SA/T 150W/942 1CT |
| Order product name | CDM-SA/T 150W/942 1CT/12 |
| Pieces per pack | 1 |
| Packing configuration | 12 |
| Packs per outerbox | 12 |
| Bar code on pack - EAN1 | 8711500200945 |
| Bar code on outerbox - EAN3 | 8711500200952 |
| Logistic code(s) - 12NC | 928086605103 |
| Net weight per piece | 0.030 kg |
Installation diagrams
CDM-SA/T 150W/942 1CT+
G12+
any+
