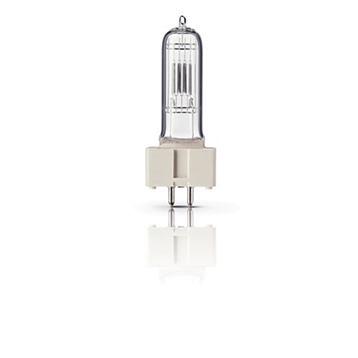

Philips 6895P 1200W 230V GX9.5 Broadway Halogenlamp
Cikkszám: 8711500185501
8.580.-Ft
GPC kód: 923931442928
Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.
- Studio/film: all lamps have a correlated color temperature of 3200K and P3 technology
- Video: high constant light output and color temperature
- Studio/film: Studio, film, theater and disco lighting
- Video: Portable film and video lights, reproduction cameras
- Studio/film:High lumen output
- Studio/film:Enables use at higher temperatures in any burning position. Longer lifetime, fewer early failures, consistent performance over time.
- Video: Makes attractive, accurately exposed pictures possible
The Halogen High Voltage SE (Film/Studio) family
The high, constant output and consistent color temperature of these single ended halogen lamps ensure attractive, accurately exposed pictures for both film and video. Furthermore, these lamps incorporate the highly innovative P3 technology, developed by Philips. This allows the lamps to be used at higher temperatures, which extends overall lifetime and consistency of their high-quality light output. P3 technology also allows the lamp to be used in any burning position and enables more compact designs of fixtures. In addition, the very wide choice of dimensions and power ratings opens new levels of creative freedom for the luminaire designer.
Features
Applications
Halogen High Voltage SE (Film/Studio) – stars on film and video
General Characteristics
| Philips Code | 6895P |
| LIF Code | CP/90 |
| System Description | P3 Technology |
| Cap-Base | GX9.5 |
| Bulb Finish | Clear |
| Filament Shape | Bi-Plane |
| Operating Position | s90 |
| Main Application | Entertainment |
| Life to 50% failures | 240 hr |
Light Technical Characteristics
| Color Temperature Technical | 3200 K |
| Luminous Flux Lamp | 30000 Lm |
Electrical Characteristics
| Lamp Wattage | 1200 W |
| Voltage | 230 V |
| Dimmable | Yes |
| Rapid Acting HBC Fuse | 10 V |
Luminaire Design Requirements
| Pinch Temperature | 400 (max) C |
Product Dimensions
| Overall Length C | 120 (max) mm |
| Diameter D | 28 (max) mm |
| Pin Length K | 8.4 (min), 9.2 (max) mm |
| Light Center Length L | 67 mm |
| Pin Diameter P | 3.10 (min), 3.25 (max) mm |
| Pin Distance R | 9.53 mm |
| Filament Dimensions (WxH) [mm] | 16x14 |
| Filament Height H | 15.5 mm |
| Filament Length W | 17 mm |
Product Data
| Order code | 923931442928 |
| Full product code | 923931442928 |
| Full product name | 6895P 1200W GX9.5 230V 1CT |
| Order product name | 6895P 1200W GX9.5 230V 1CT/10 |
| Pieces per pack | 1 |
| Packing configuration | 10 |
| Packs per outerbox | 10 |
| Bar code on pack - EAN1 | 8711500185501 |
| Bar code on outerbox - EAN3 | 8711500185518 |
| Logistic code(s) - 12NC | 923931442928 |
| Net weight per piece | 0.046 kg |
Installation diagrams
6895P 1200W GX9.5 230V 1CT+
GX9.5+
s90+
