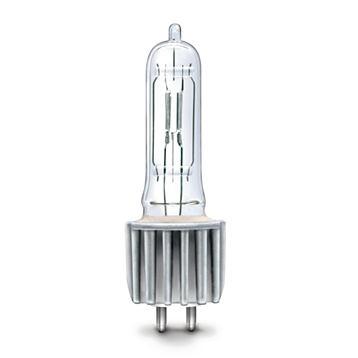

Philips 7007 HPL 575W 230V G9,5

Cikkszám: 8711500185280

9.260.-Ft

GPC kód: 924554944228


Nagyobb mennyiségű rendelés esetén kérjük vegye fel velünk a kapcsolatot.

    The HPL family

    HPL lamps include a barrel-shaped filament that is approved by ETC for use in its Source Four™ fixtures. Bright, high quality light and high beam intensity is assured by the optimal filament design, while the unique P3 technology, developed by Philips, allows the lamp to be used at higher temperatures, which extends lifetime and consistency of high-quality light output, resulting in fewer early failures and fewer maintenance man hour costs.





    Features
    • Philips Pinch Protection
    • Optimal filament
    • Designed for Source FourTM fixures
    Applications
    • Studio
    • Theatre stages
    • Entertainment lighting




    HPL – approved for Source Four™
    • Enables use at higher temperature in any burning position.Longer liftime, fewer early failures, consistent performance over time.
    • High beam intensity
    • High beam intensity and high quality bright light
    General Characteristics
    Philips Code 7007
    System Description P3 Technology
    Cap-Base Heat Sink
    Cap-Base Information Heat Sink
    Bulb Finish Clear
    Filament Shape Bi-Plane
    Operating Position any
    Main Application Entertainment
    Life to 50% failures 400 hr

    Electrical Characteristics
    Lamp Wattage 575 W
    Voltage 230 V
    Dimmable Yes
    Rapid Acting HBC Fuse 4 V

    Light Technical Characteristics
    Color Rendering Index 100 Ra8
    Color Temperature Technical 3100 K
    Luminous Flux Lamp 14900 Lm

    Product Dimensions
    Overall Length C 104 (max) mm
    Diameter D 19 (max) mm
    Light Center Length L 60.3 mm
    Filament Dimensions (WxH) [mm] 8.6x9.5x7.5
    Filament Height H 9.5 mm
    Filament Length W 8.6 mm
    Filament Depth D1 7.5 mm

    Luminaire Design Requirements
    Pinch Temperature 500 (max) C

    Product Data
    Order code 924554944228
    Full product code 924554944228
    Full product name 7007 575W Heat Sink 230V 1CT
    Order product name 7007 575W Heat Sink 230V 1CT/10
    Pieces per pack 1
    Packing configuration 10
    Packs per outerbox 10
    Bar code on pack - EAN1 8711500185280
    Bar code on outerbox - EAN3 8711500185419
    Logistic code(s) - 12NC 924554944228
    Net weight per piece 51.000 gr


    Installation diagrams

    HPL+
    +
